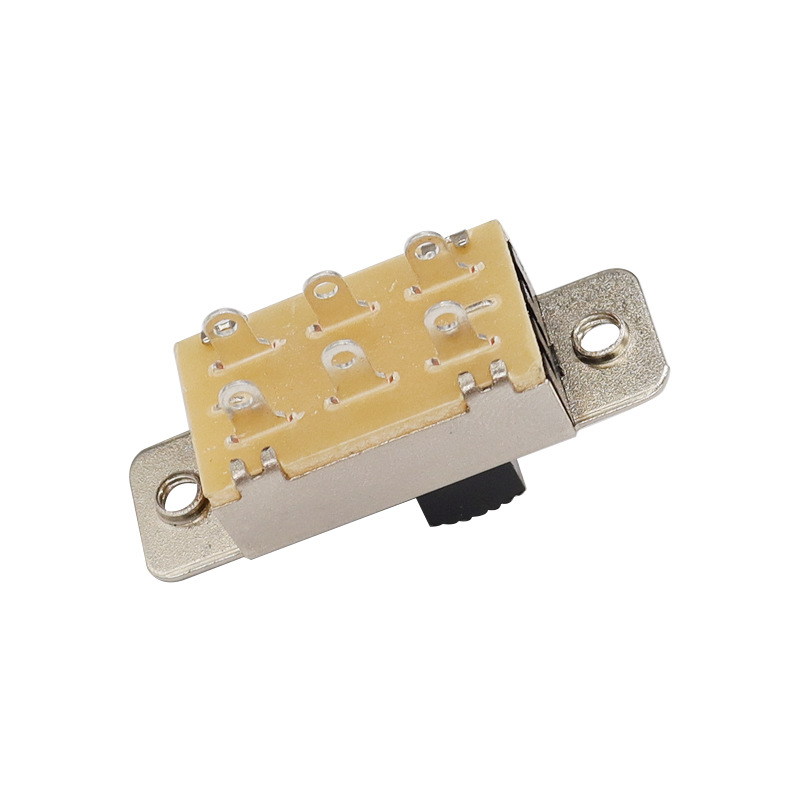

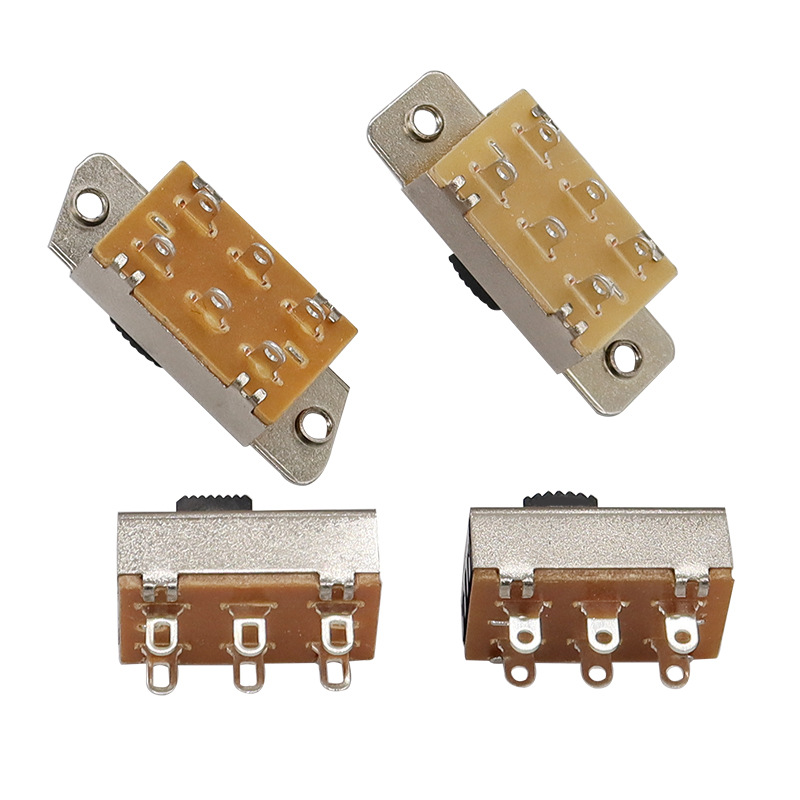

slide switch SS23F19, double-row 6-pin three-position slide switch, car navigation DVD slide switch
Five Advantages Of Products
- high quality materials
- high quality products
- strict quality control
- low-volume production
- mass production
Product Details
Control type: 2 poles, 3 positions
Rated current A: 4A
Rated voltage V: AC125V
Insulation resistance: ≥100MΩ
Contact resistance: ≤50mΩ
Operating force: 250gf±100gf
Stroke: 3.2mm
Operating structure: Vertical
Color: Black rubber handle
Packaging method: Plate packaging
Handle height: 0-12mm
As the products come in different sizes, please contact us for any other information
