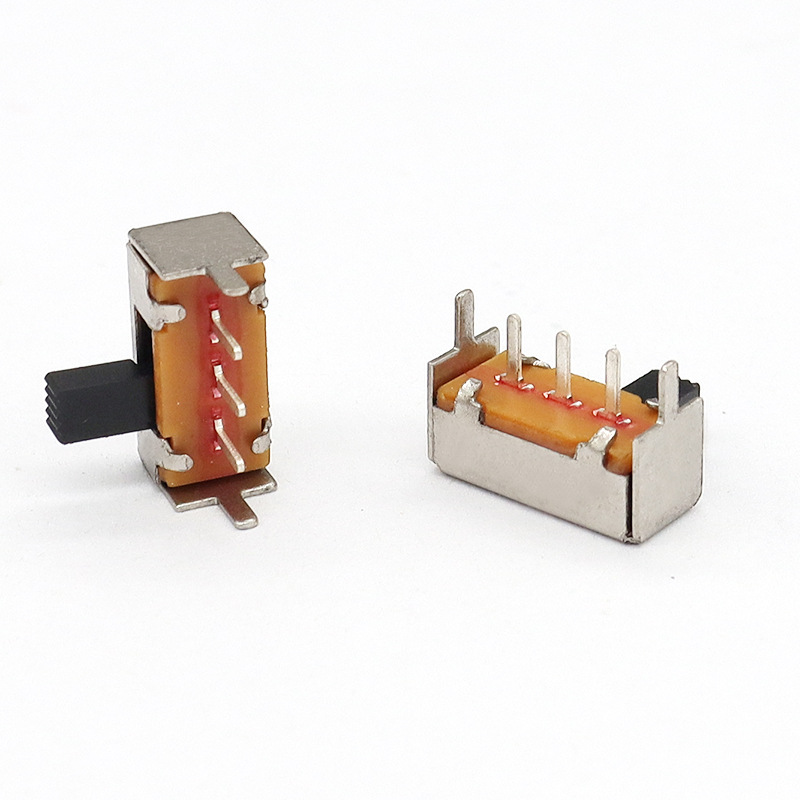

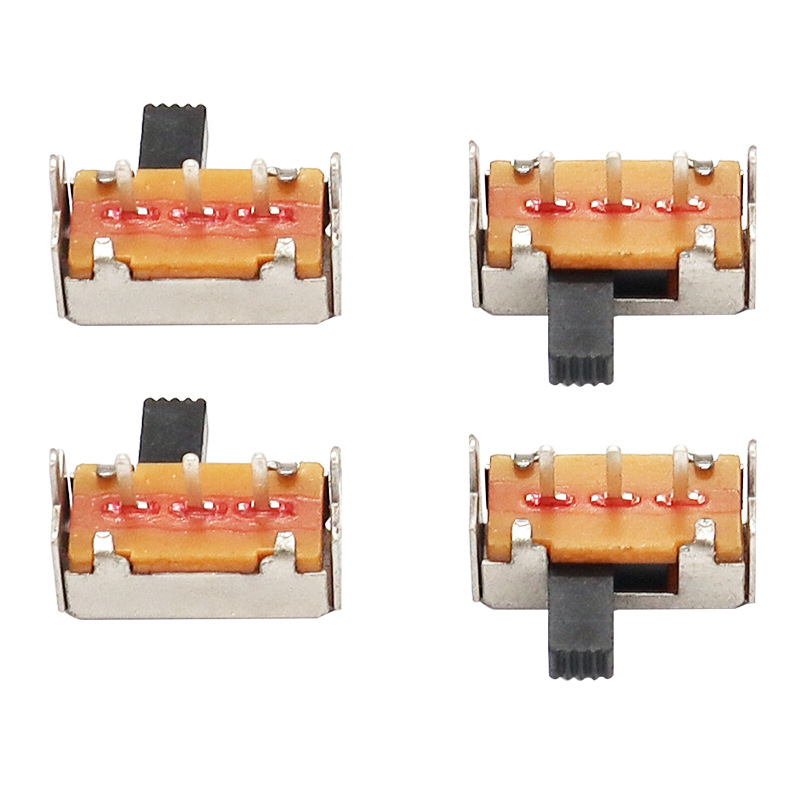

slide switch SK12F14 side-pull horizontal switch, ceiling lamp side-pull slide switch, single-row 3-pin vertical slide switch
Five Advantages Of Products
- high quality materials
- high quality products
- strict quality control
- low-volume production
- mass production
Product Details
Control type: Bipolar 4-bit
Rated current A: 0.3A
Rated voltage V: DC50V
Insulation resistance: ≥100MΩ
Dielectric strength: 250VAC/min
Contact resistance: < 100Ω
Operating force: 250gf±100gf
Stroke: 2.0mm
Supplementary parameters: Four levels
As the products come in different sizes, please contact us for any other information
dongguan xiaozhuo technology co., ltd
Contact Person: flora huang
Department: sales department
Post: sales manager
Telephone: +86 17774772320
Landline: +86 0769-86341524
Company Address: No. 250, shiheng avenue, shipai town, dongguan City
Factory Address: No. 250, shiheng avenue, shipai town, dongguan city
Website: www.xz-switch.com
