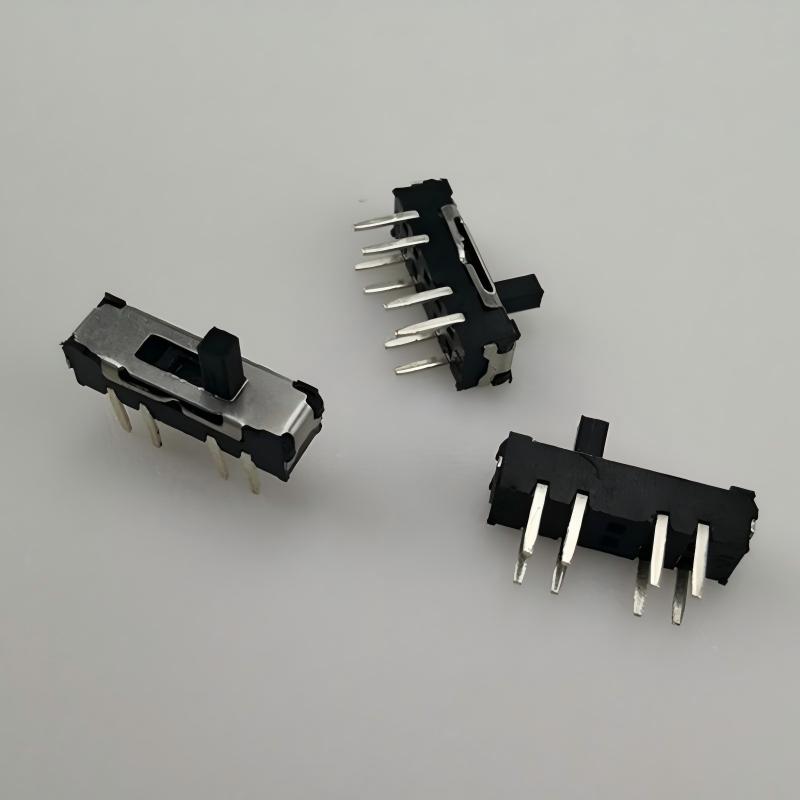

slide switch MSS-23D19 eight-pin horizontal/vertical switch pinned/pinless three-position
Five Advantages Of Products
- high quality materials
- high quality products
- strict quality control
- low-volume production
- mass production
Product Details
Control Type: 1-pole 3-throw
Rated Current A: 0.5
Rated Voltage V: DC 50
Ordering Number: MSS-23D19
Insulation Resistance: ≥100MΩ
Dielectric Strength: 500VAC/min
Contact Resistance: ≤30mΩ
Operating Force: 250gf ± 50gf
Travel: 2.0mm
Operating Structure: Vertical
