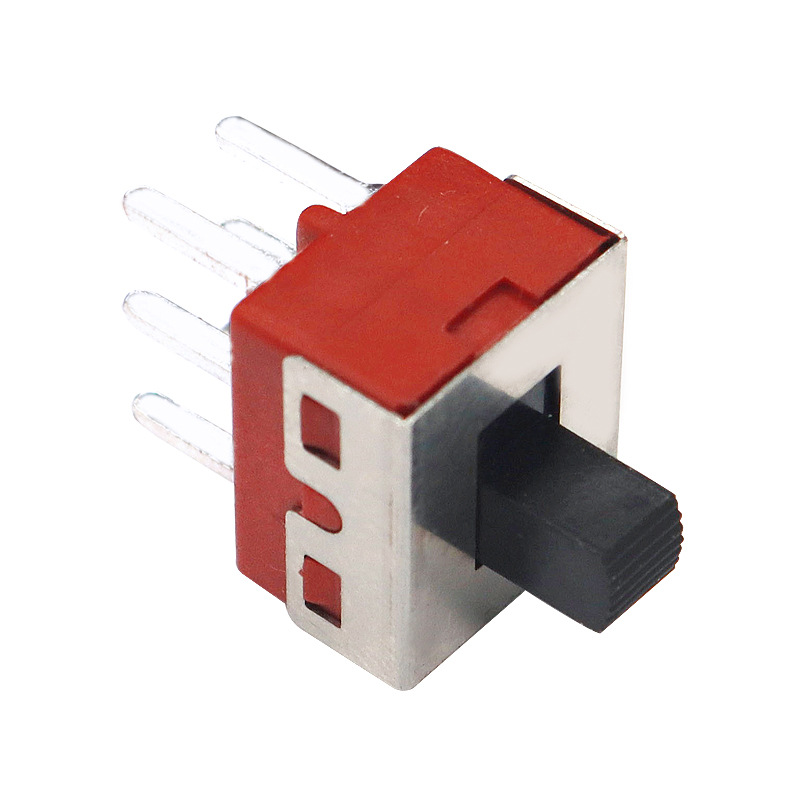

slide switch SS22D10 high-current slide switch for medical toys, audio equipment, electronic products, vertical and vertical pull 2-position slide switch
Five Advantages Of Products
- high quality materials
- high quality products
- strict quality control
- low-volume production
- mass production
Product Details

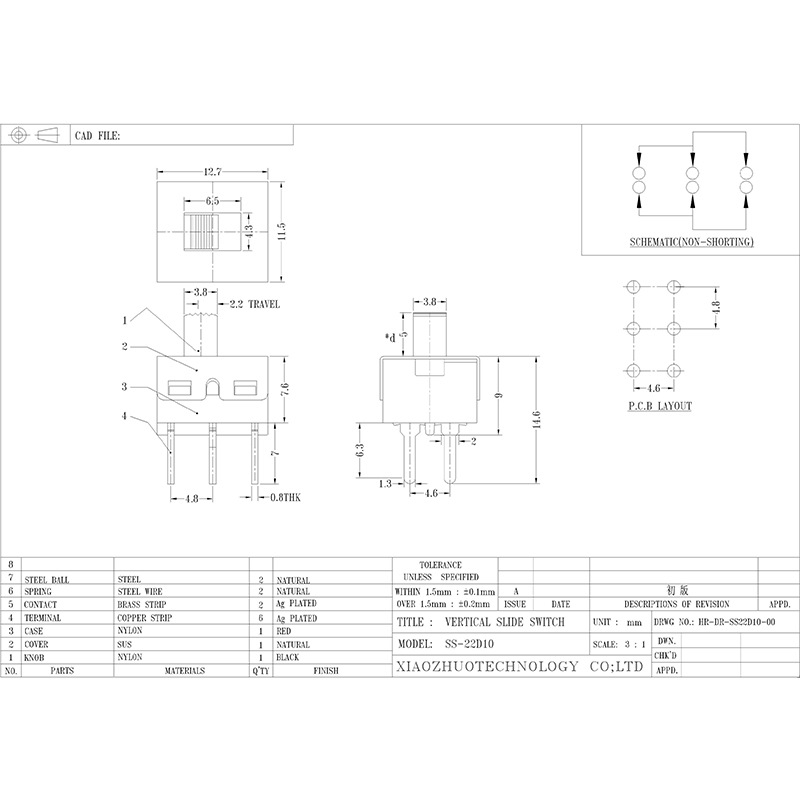

Model: SS22D10
Control type: 2 poles, 2 positions
Rated current: 1.5A
Rated voltage: AC250
Insulation resistance: ≥100MΩ
Dielectric strength: 250VAC/min
Contact resistance: ≤30mΩ
Operating force: 250gf±100gf
Stroke: 2.0mm operation
Structure: Vertical
Packaging method: Tray packaging
Handle height: 3-12mm
As the products come in different sizes, please contact us for any other information
