Products

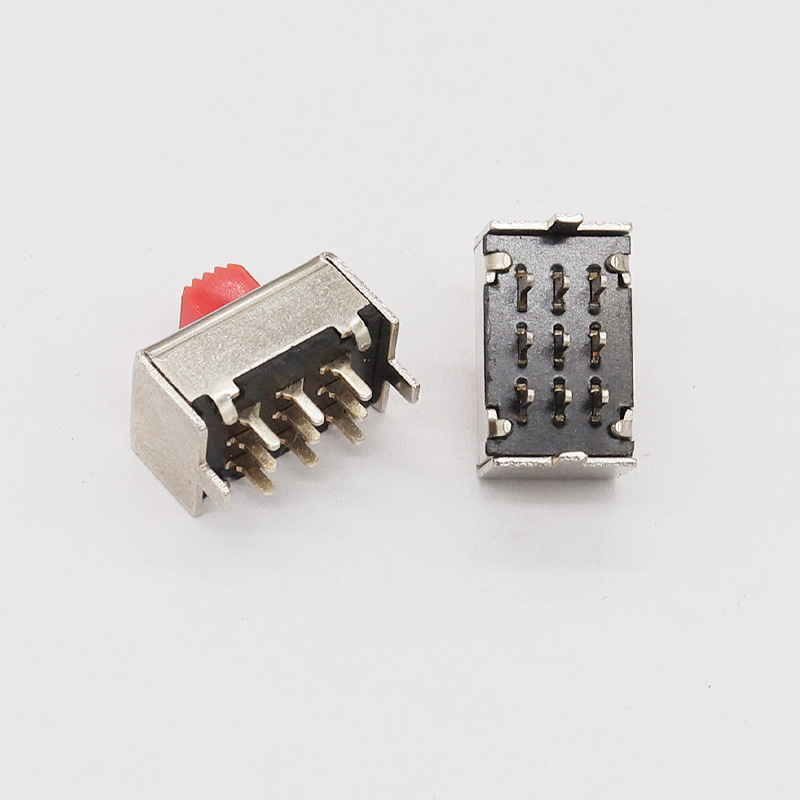

slide switch SS32F07 two-position slide switch, three-way on-off side-position two-position slide micro mini electronic switch
Five Advantages Of Products
- high quality materials
- high quality products
- strict quality control
- low-volume production
- mass production
Product Details
Model: SS32F07
Control type: 2-pole 3-bit
Rated current: 0.3
Insulation resistance: ≤100mΩ
Dielectric strength: 250VAC/min
Contact resistance: < 100Ω Operating force: 250gf
Stroke: 2.0mm
Operating structure: Horizontal

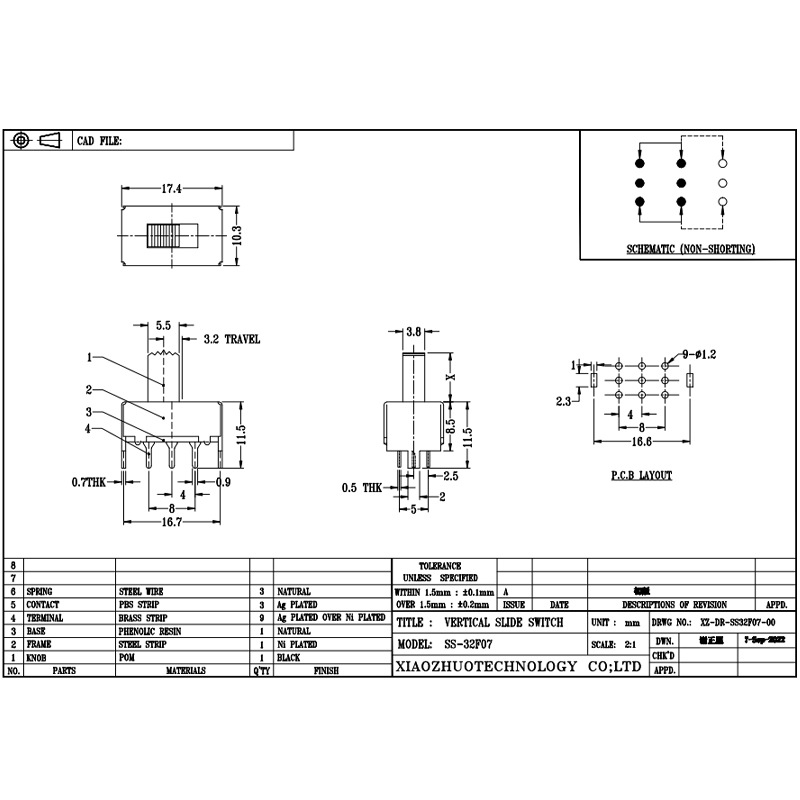

Overall dimensions: 12.7*6.7*6.4mm
Installation dimensions: 19.6*5.9*5mm
As the products come in different sizes, please contact us for any other information
