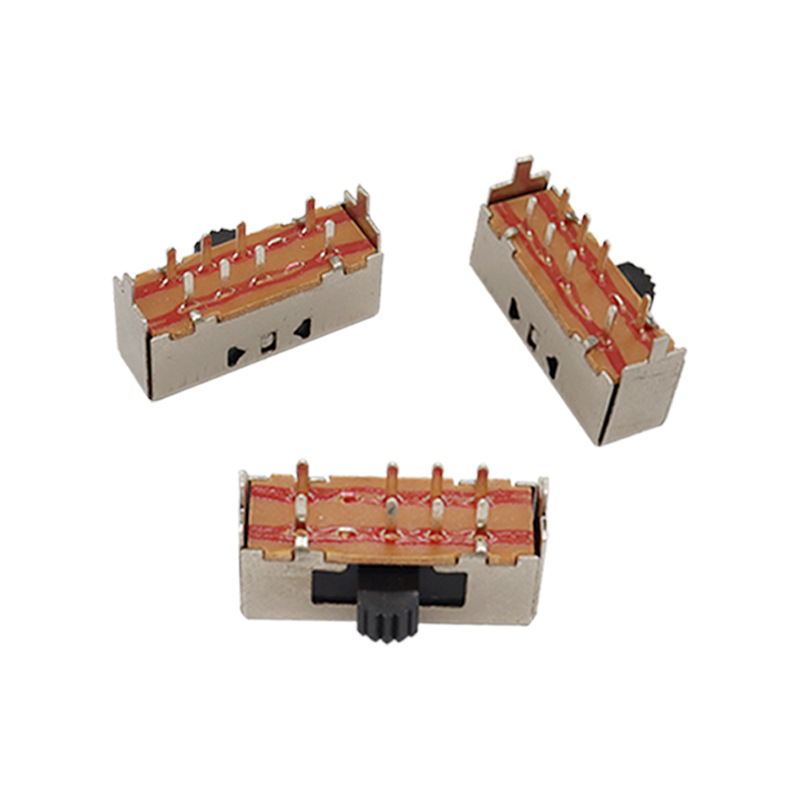

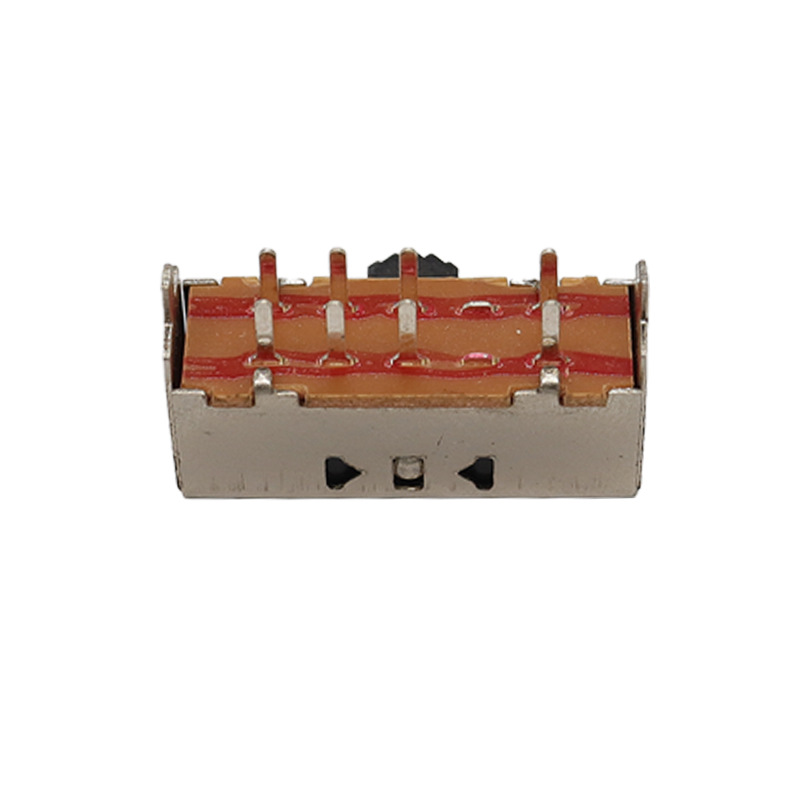

slide switch SK23H01 small bipolar three-position two-row eight-pin horizontal side-pull 2P3T slide switch
Five Advantages Of Products
- high quality materials
- high quality products
- strict quality control
- low-volume production
- mass production
Product Details
Control type: 2 poles, 3 positions
Rated current: 0.3A
Rated voltage: DC30
Insulation resistance: ≥100MΩ
Contact resistance: < 100Ω
Operating force: 250gf±100gf
Stroke: 4.0mm
Operating structure: Vertical
Handle height: 2-7mm
As the products come in different sizes, please contact us for any other information
