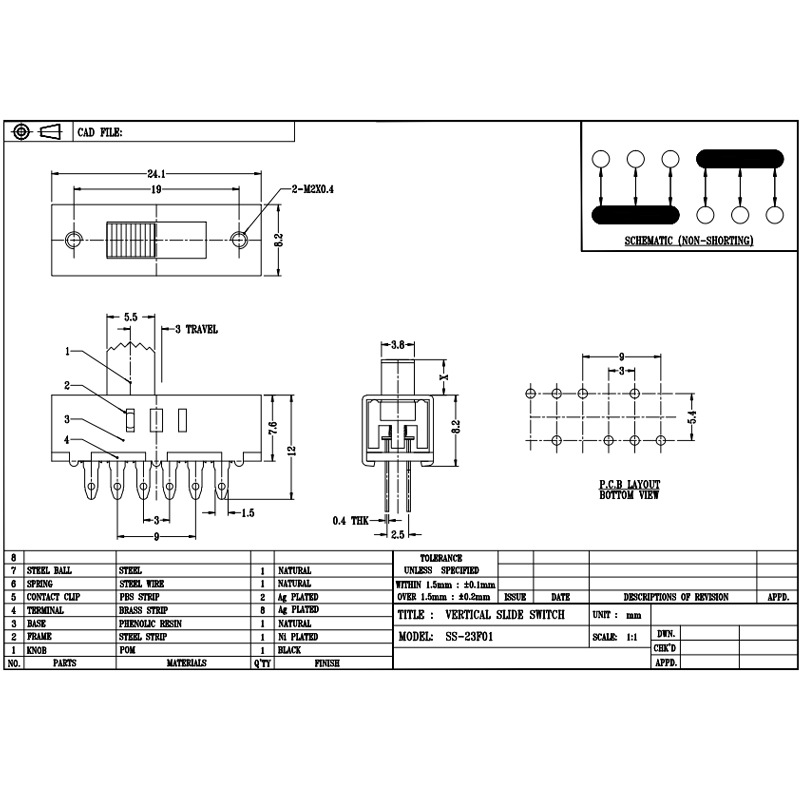

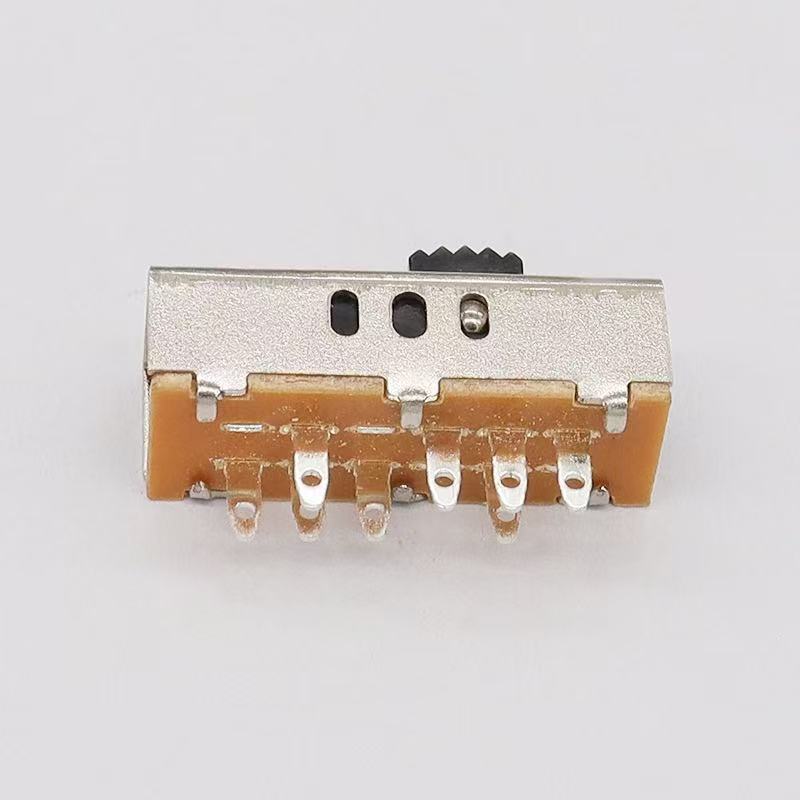

slide switch SS23F10 Three-speed sliding switch for LED light color temperature adjustment and high-speed hair dryer motor
Five Advantages Of Products
- high quality materials
- high quality products
- strict quality control
- low-volume production
- mass production
Product Details
Control type: 2-pole 3-position
Rated current: 0.3 Rated Voltage: DC50
Order number: SS23F10
Insulation resistance: ≥100MΩ
Dielectric strength: 250VAC/min
Contact resistance: < 100Ω Operating
Force: 250gf±100gf Stroke: 3.2mm
Operating structure: Vertical
Colour:Customized
External dimensions :20*9.5*12mm
Installation dimensions: 19.6*5.9*5mm
Anti-counterfeiting code: HAOSWITCH
