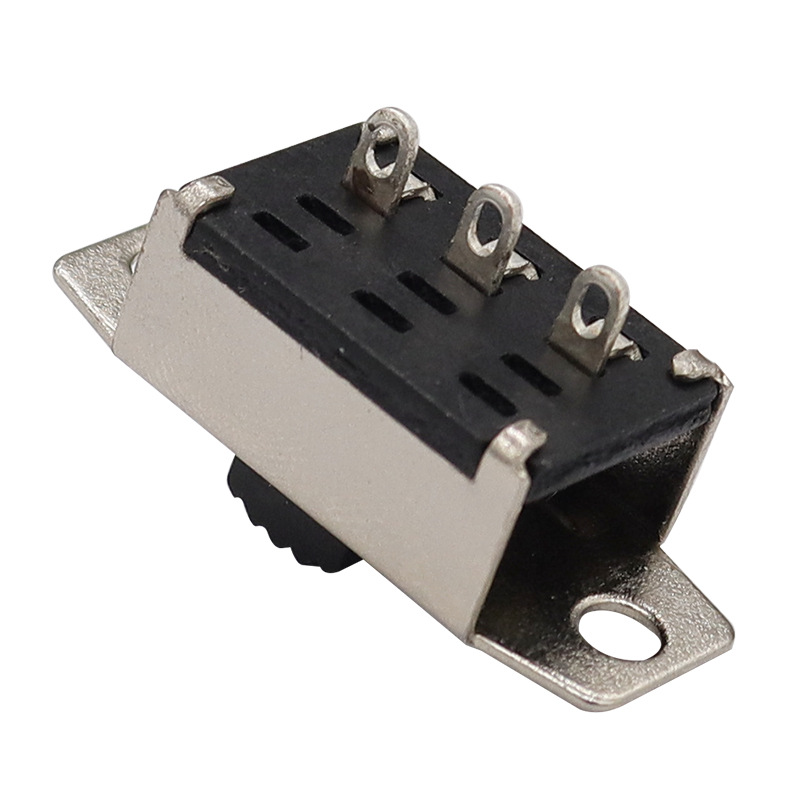

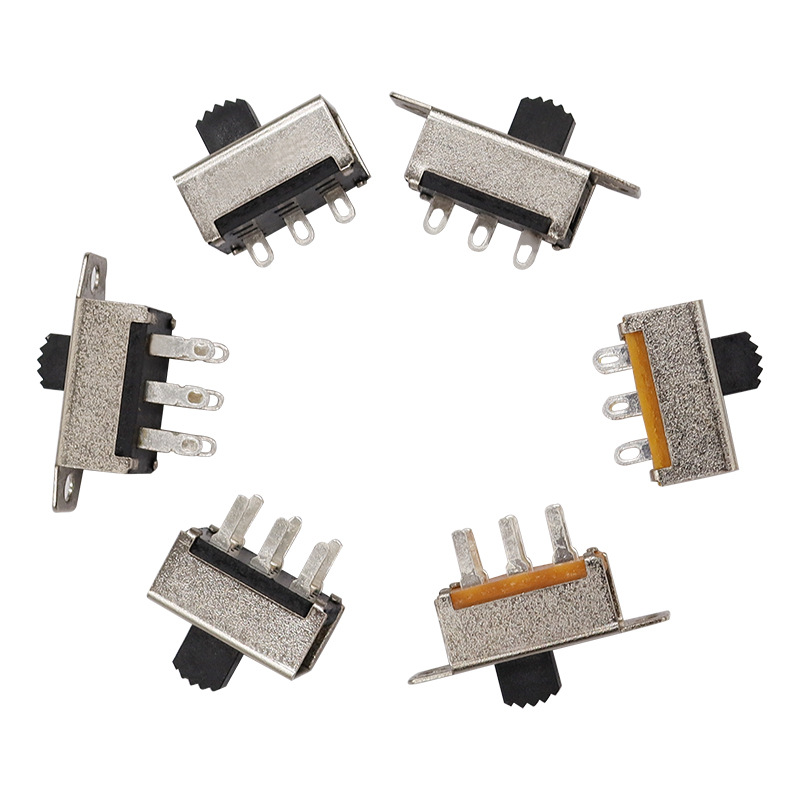

slide switch SS22G08 6-pin 2P2 sliding switch for the high current band of the hair straightener hot air gun
Five Advantages Of Products
- high quality materials
- high quality products
- strict quality control
- low-volume production
- mass production
Product Details
Control type: First-stage two-position
Insulation resistance: ≥100MΩ
Dielectric strength: 250VAC/min
Contact resistance: ≤30mΩ
Operating force: 250gf±100gf
Stroke: 3.5mm Operating structure: Vertical

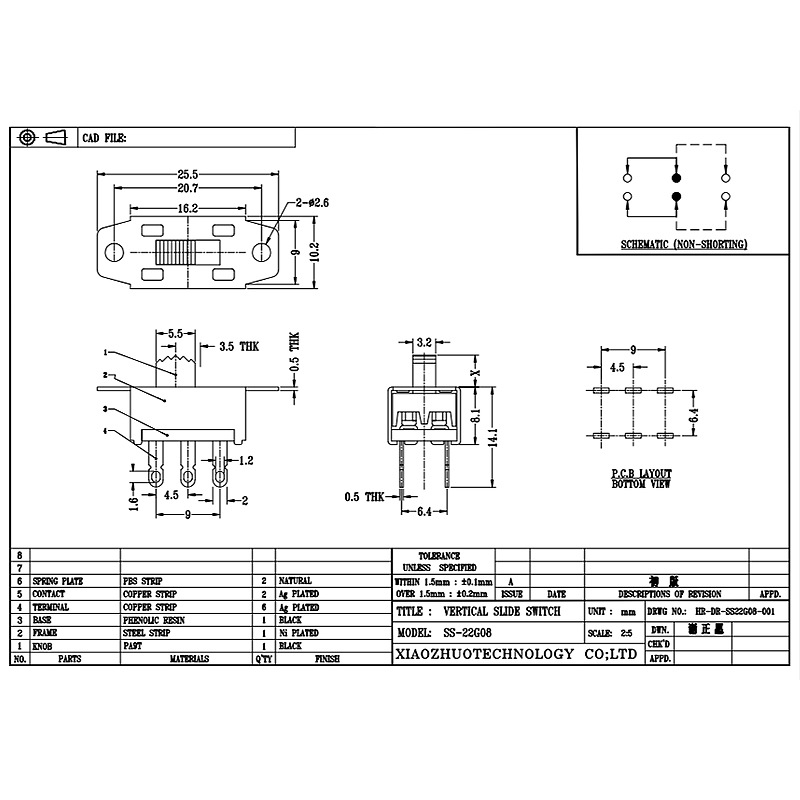

External dimensions: 12.7*6.7*6.4mm
Installation Dimensions: 19.6*5.9*5mm
Packaging method :Bagged
supplementary parameters: Two Settings
