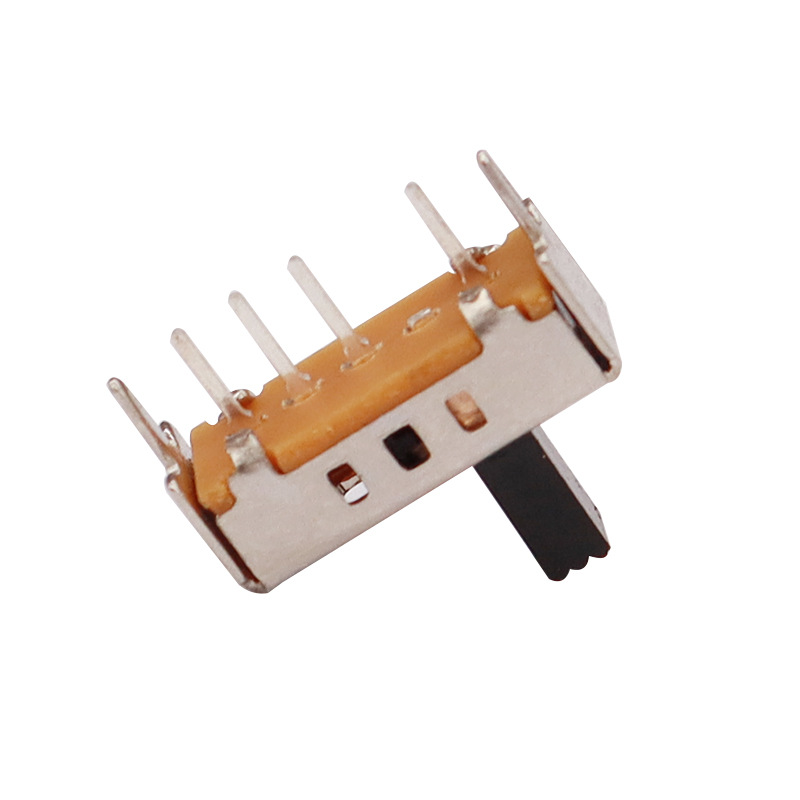

slide switch SS13D07 Single-row four-pin micro toggle switch , vertical toggle switch for electrical appliances, 3, 4, 5, and 6 positions sliding switch
Five Advantages Of Products
- high quality materials
- high quality products
- strict quality control
- low-volume production
- mass production
Product Details
Control type: Single-pole 3-position
Rated current A: 0.3A
Rated Voltage V: DC30
Insulation resistance: ≥100MΩ
Dielectric strength: 250VAC/min
Contact resistance: < 100Ω Operating
Force: 250gf±100gf
Stroke: 2.0mm
Color: Custom

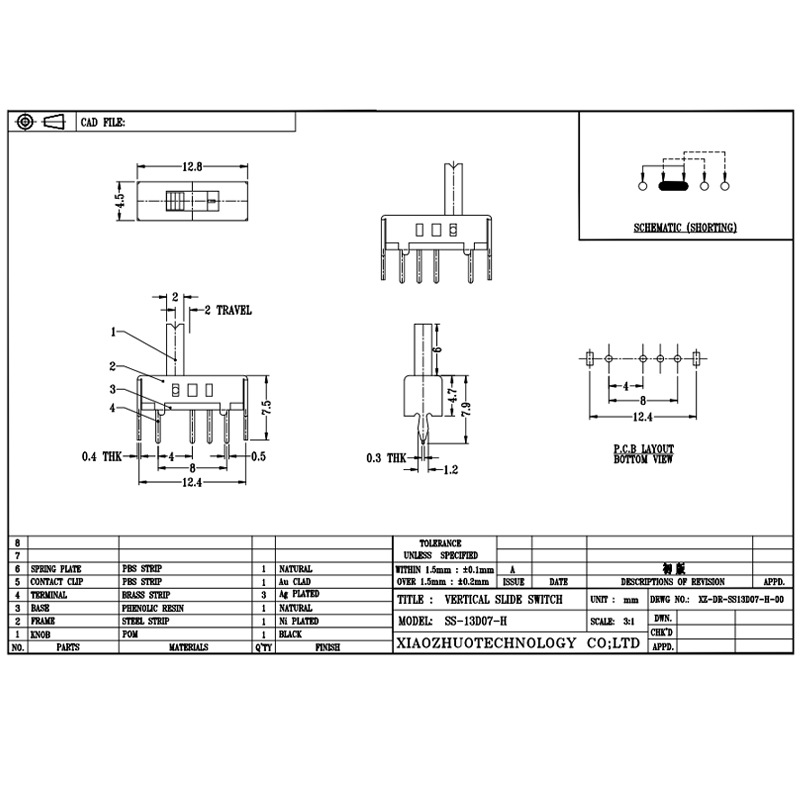

External dimensions: 12.7*6.7*6.4mm
Installation dimensions 19.6*5.9*5mm
Anti-counterfeiting code: HAOSWITCH
Supplementary parameters: Three levels
