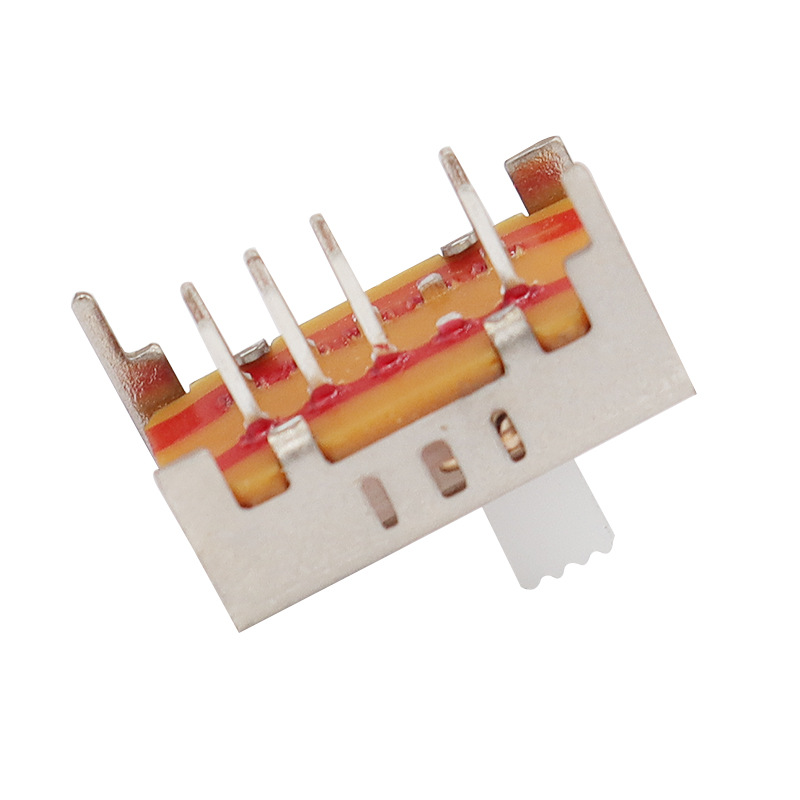

slide switch SS23D15 flashlight mini toy sliding band switch
Five Advantages Of Products
- high quality materials
- high quality products
- strict quality control
- low-volume production
- mass production
Product Details
Control type: 2-pole 3-position
Rated voltage V: DC30
Insulation resistance: ≥100MΩ
Dielectric strength: 250VAC/min
operating force: 250gf±100gf
Stroke: 2.0mm
operating structure: Vertical

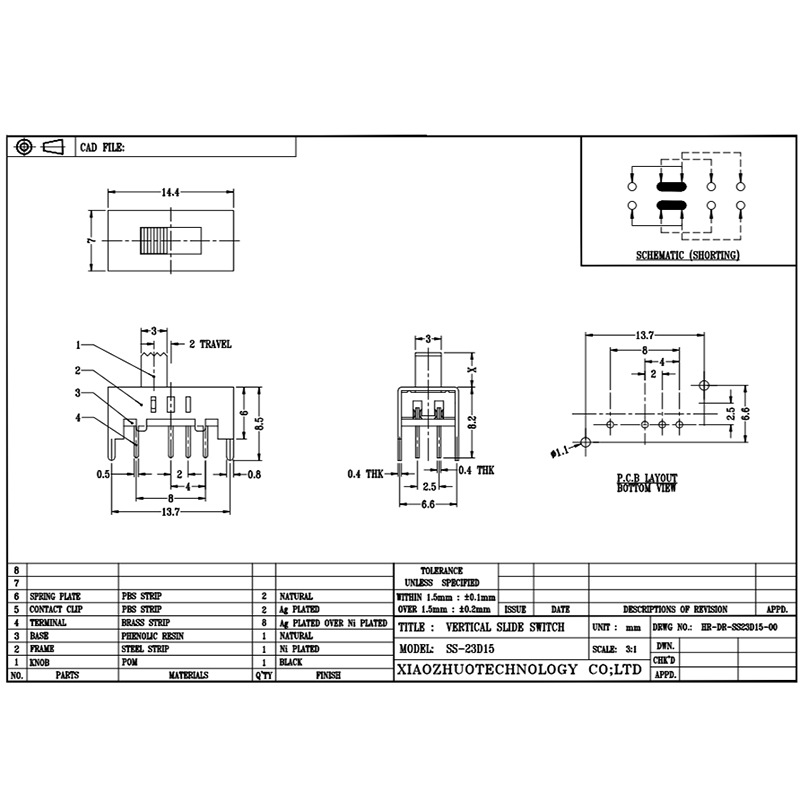

overall dimensions 12.7*6.7*6.4mm
Installation dimensions: 19.6*5.9*5mm
Anti-counterfeiting code: HAOSWITCH
Packaging method: panel-mounted
Handle height: 3-12mm
Supplementary parameters: Two gears, three gears
dongguan xiaozhuo technology co., ltd
Contact Person: flora huang
Department: sales department
Post: sales manager
Telephone: +86 17774772320
Landline: +86 0769-86341524
Company Address: No. 250, shiheng avenue, shipai town, dongguan City
Factory Address: No. 250, shiheng avenue, shipai town, dongguan city
Website: www.xz-switch.com
