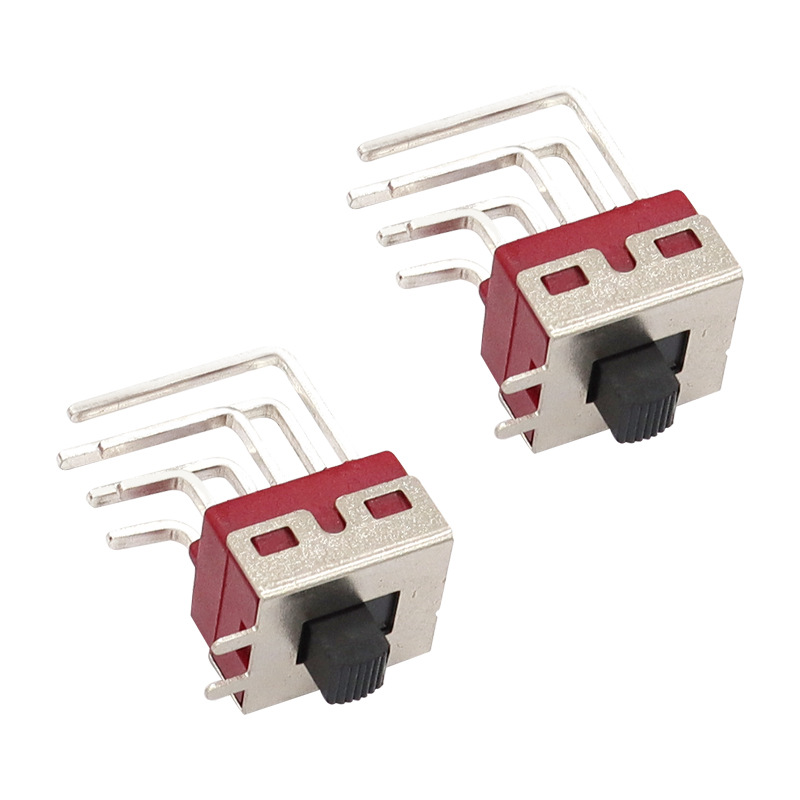

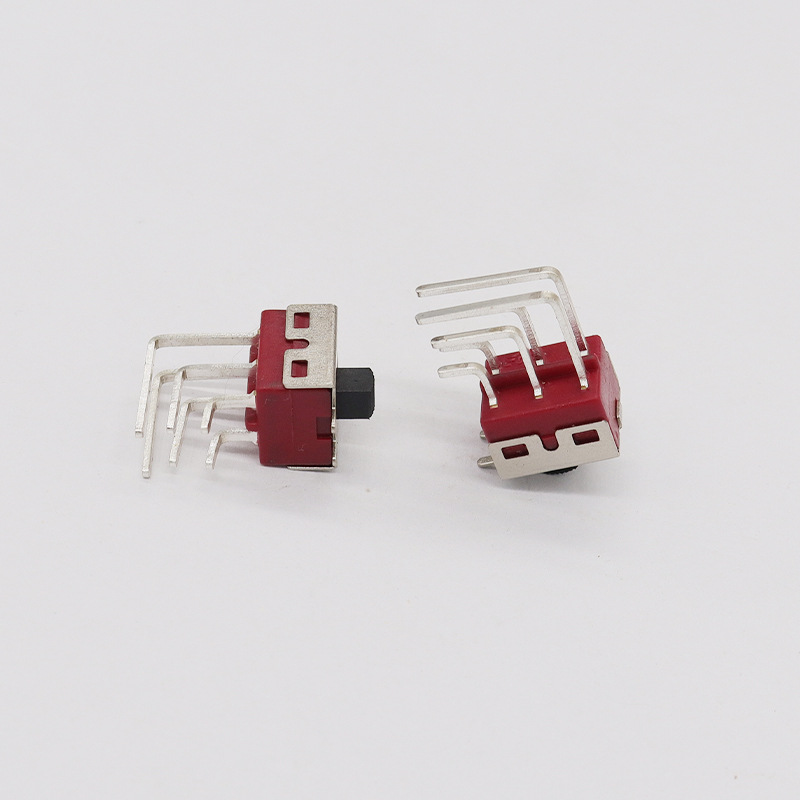

slide switch SS22D88 toy switch, lighting, hair straightener, hair dryer, high current, toggle switch
Five Advantages Of Products
- high quality materials
- high quality products
- strict quality control
- low-volume production
- mass production

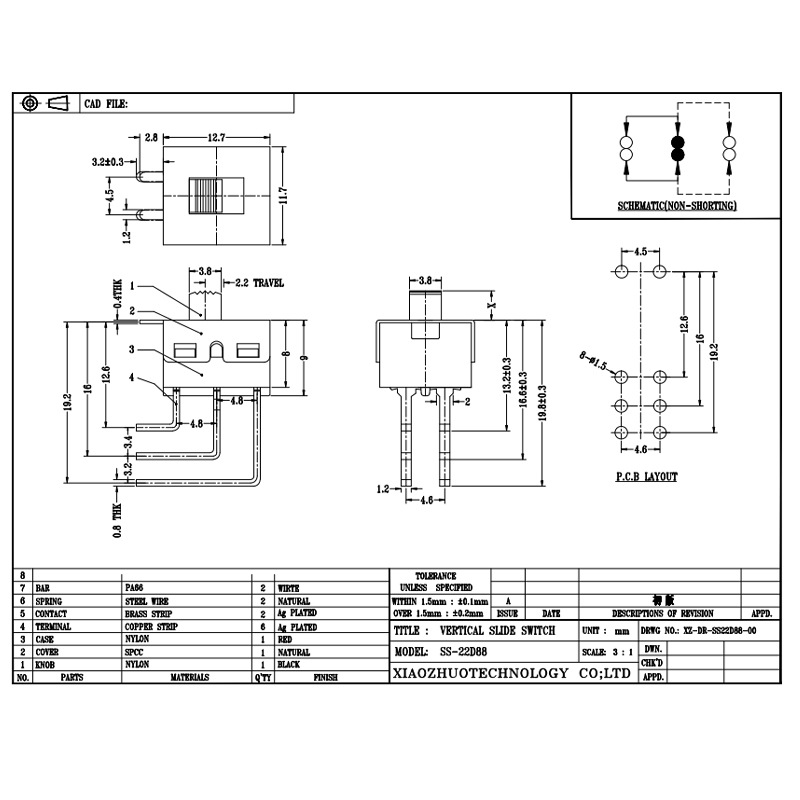

Product Details
Control type: Bipolar 2-position
Rated current A: 3A
Rated Voltage V: AC125V
Order Number: SS22D88
Insulation resistance: ≥100MΩ
Dielectric strength: AC380V/min
Contact resistance: ≤30mΩ
operating force: 250gf±100gf
Stroke: 2.0mm
operating structure: Vertical
Color: RED
controller height: 2-12mm
