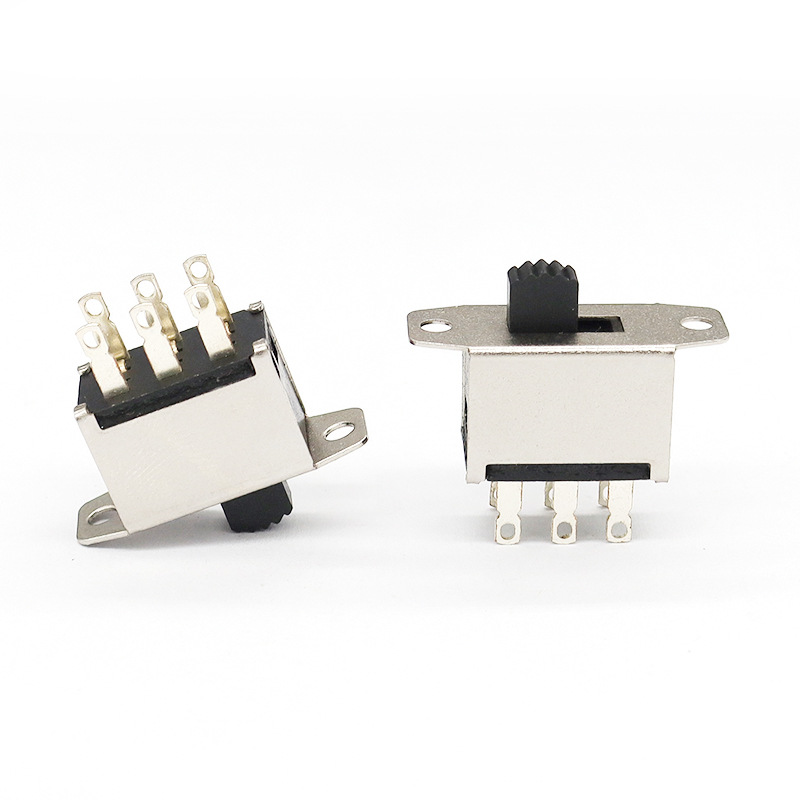

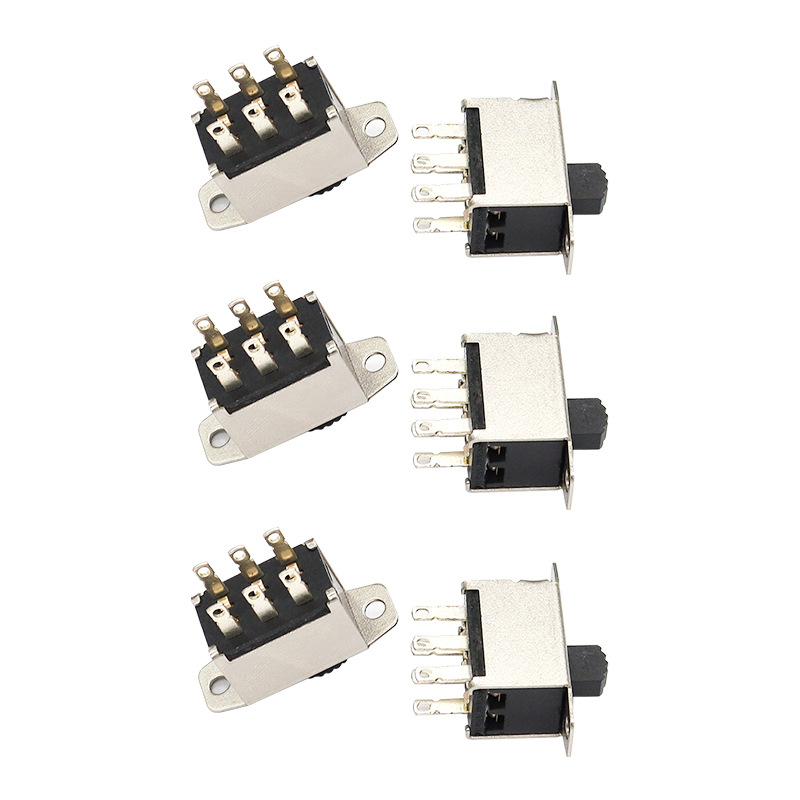

slide switch SS22G09 for the sweeping robot is a double-row 6-pin vertical toggle reset switch
Five Advantages Of Products
- high quality materials
- high quality products
- strict quality control
- low-volume production
- mass production
Product Details
Control type: 2 poles, 2 positions
Resistance: ≥100MΩ
Dielectric strength: 250VAC/min
Contact resistance: ≤30mΩ
Operating force: 500gf±150gf
Stroke: 3.5mm

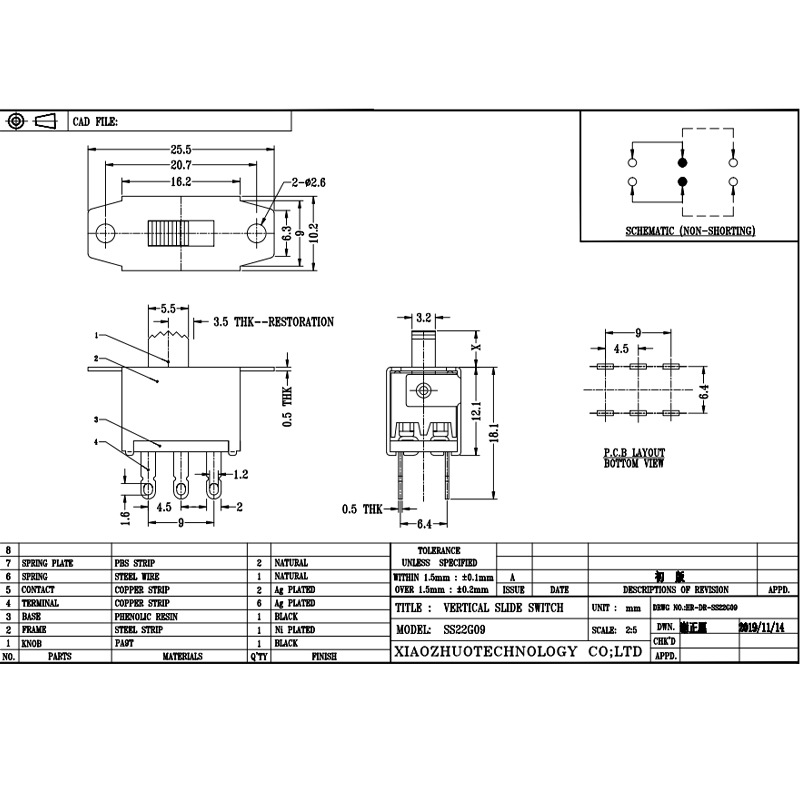

Overall dimensions: 12.7*6.7*6.4mm
Installation dimensions: 19.6*5.9*5mm
Supplementary parameter: Reset
For other product information, please contact us for consultation
