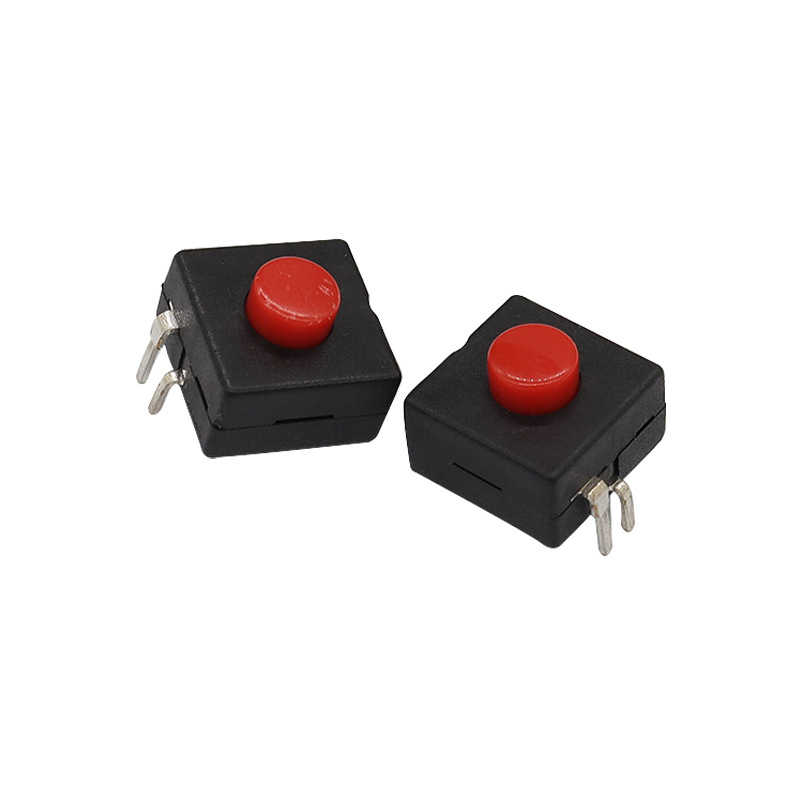

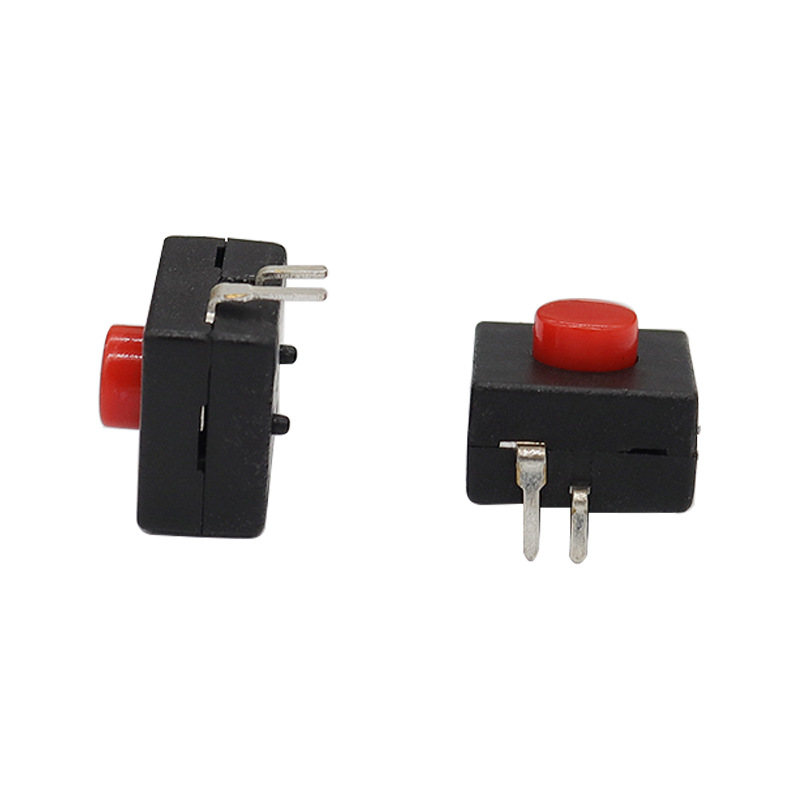

push switch HR12*12*9-2, flashlight switch, LED two-pin power on and off, button reset micro switch
Five Advantages Of Products
- high quality materials
- high quality products
- strict quality control
- low-volume production
- mass production
Product Details
Contact resistance: ≤100mΩ
Insulation resistance: ≥100MΩ
Stroke: 1.6±0.1mm
Handle color: red
Product type: Self-locking type
Operation direction: Press forward

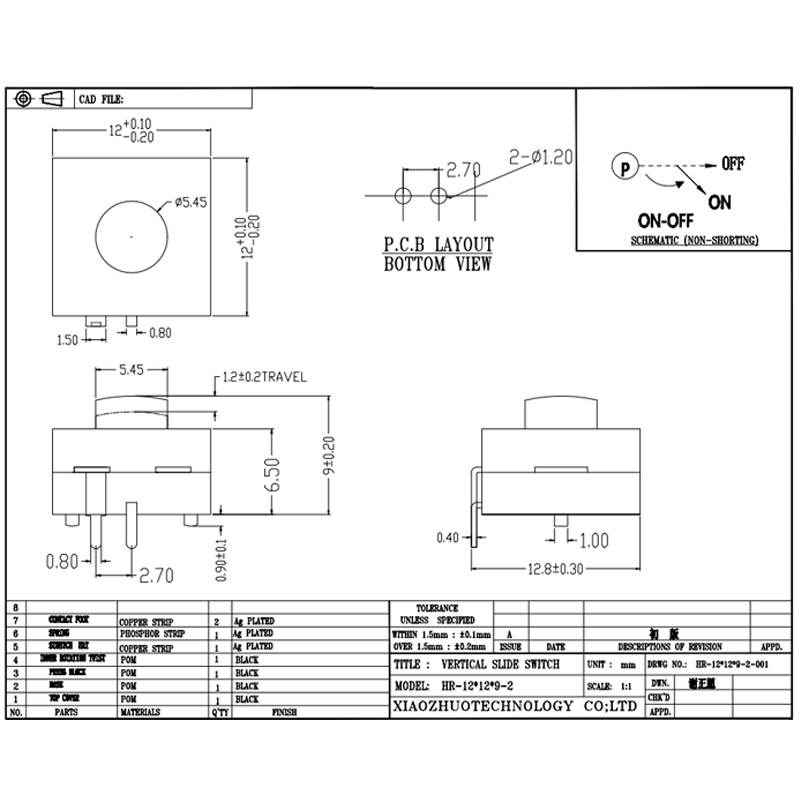

Dimensions: 12*12*9
Height: 9.1
Rated voltage: DC12V
Rated current: 2
Operating force: 500±150gf
Number of pins: 2
For other parameters, please consult for customization
