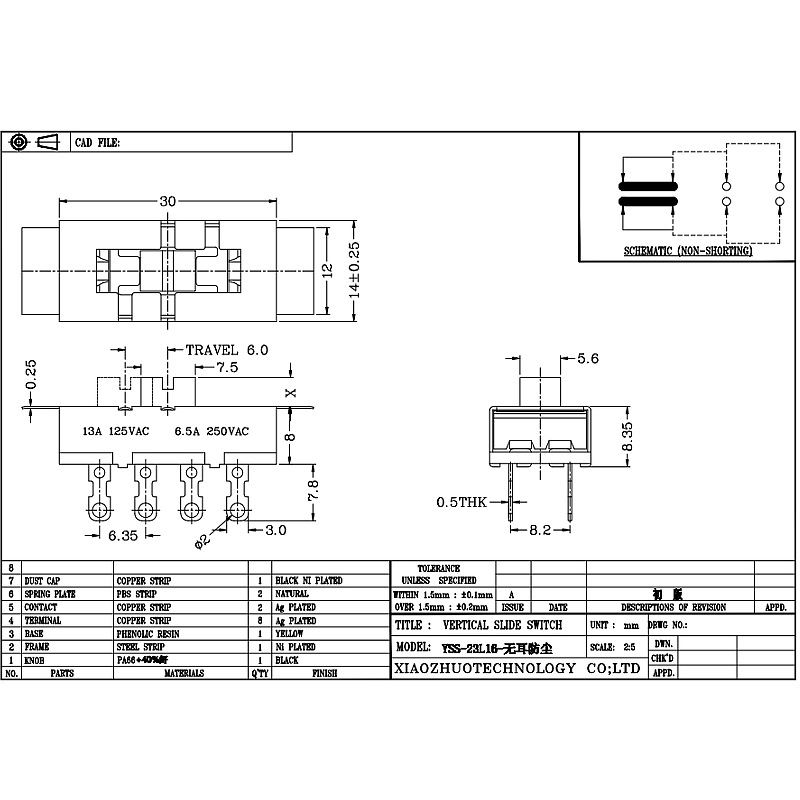

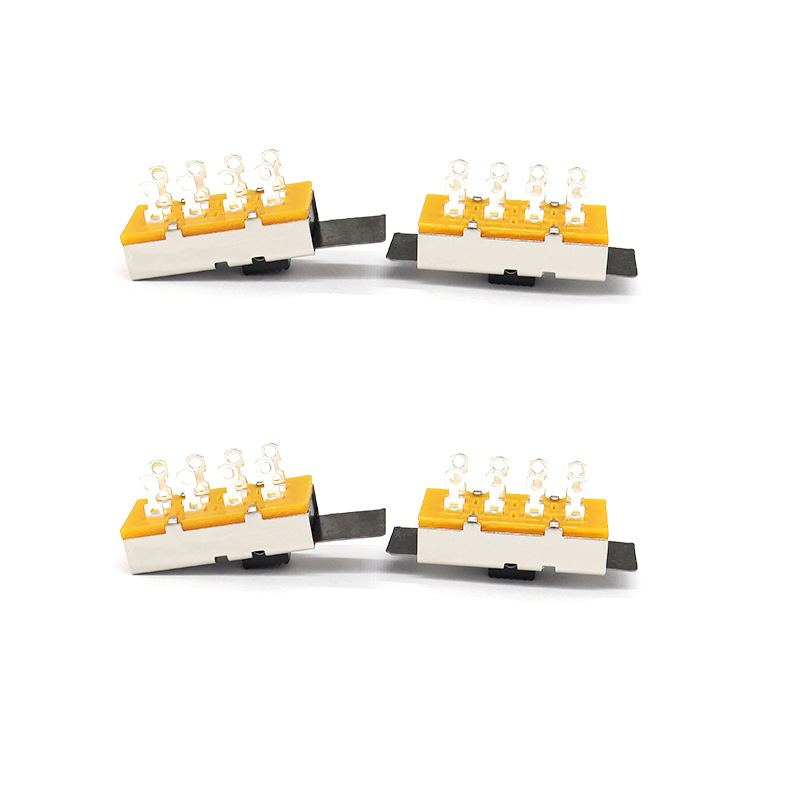

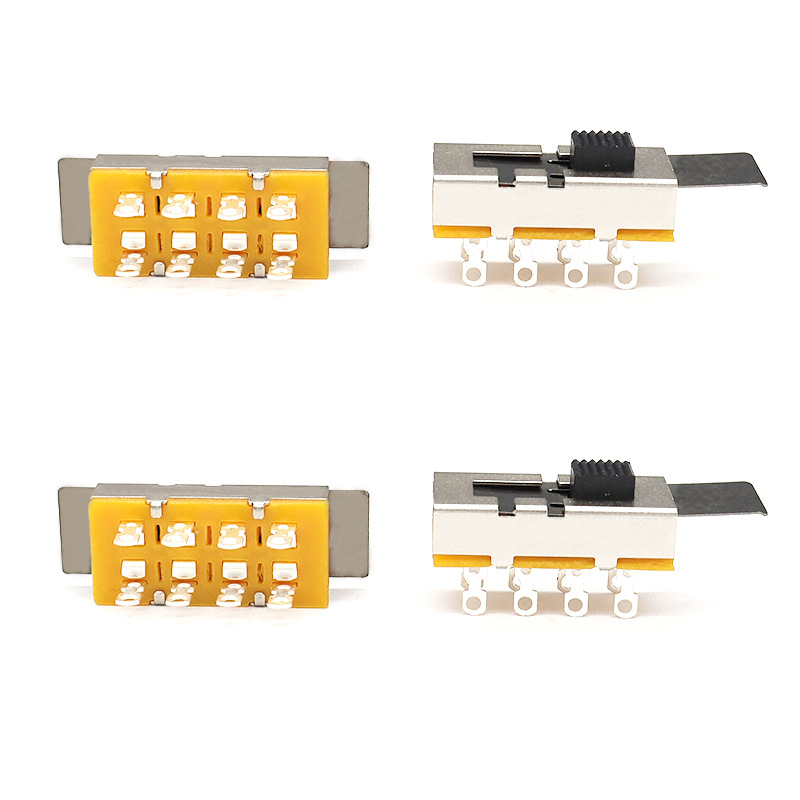

slide switch SS23L16, high current, three-position, double-row, 8-pin, shredder switch, vertical sliding switch for mechanical equipment
Five Advantages Of Products
- high quality materials
- high quality products
- strict quality control
- low-volume production
- mass production
Product Details
Control type: 2 poles, 3 positions
Insulation resistance of 23L16: ≥100MΩ
Dielectric strength: 250VAC/min
Contact resistance: ≤30mΩ
Operating force: 500gf±150gf
Stroke: 6.0mm
Operating structure: Vertical
Supplementary parameters: Four levels
For other parameters, please contact for consultation
