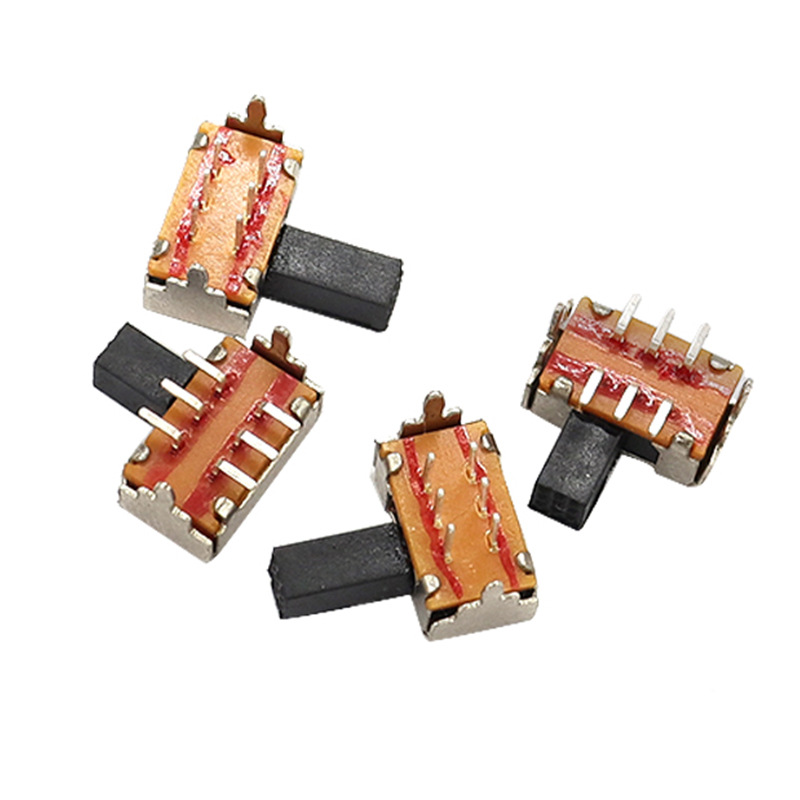

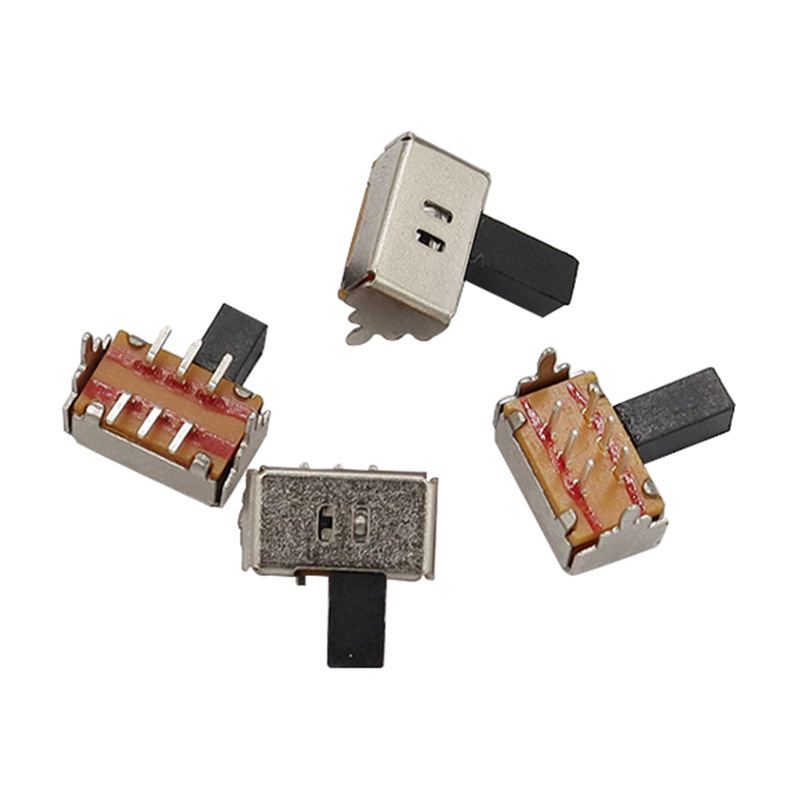

Miniature slide switch SK22D02, a small switch for electronic, electrical, communication and industrial control with two band ranges of 2P and 2T
Five Advantages Of Products
- high quality materials
- high quality products
- strict quality control
- low-volume production
- mass production

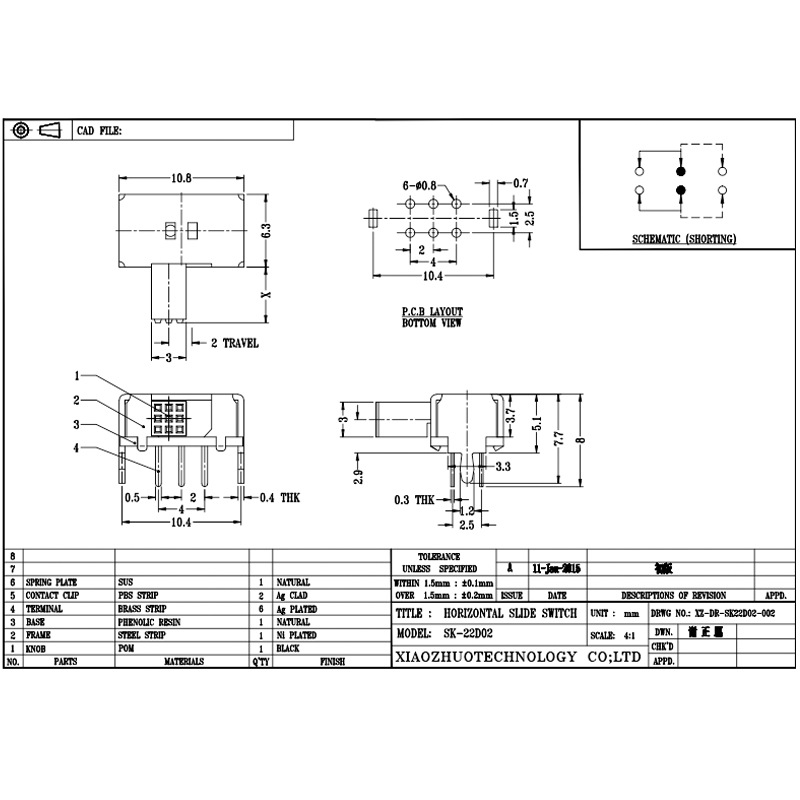

Product Details
Control type: 2 poles, 2 positions
Rated current: 0.3A
Rated voltage: DC30
Insulation resistance: ≥100MΩ
Contact resistance: < 100Ω
Operating force: 250gf±100gf
Stroke: 2.0mm
Operating structure: Horizontal
Handle height: 2-7mm
Supplementary parameters: Two levels
