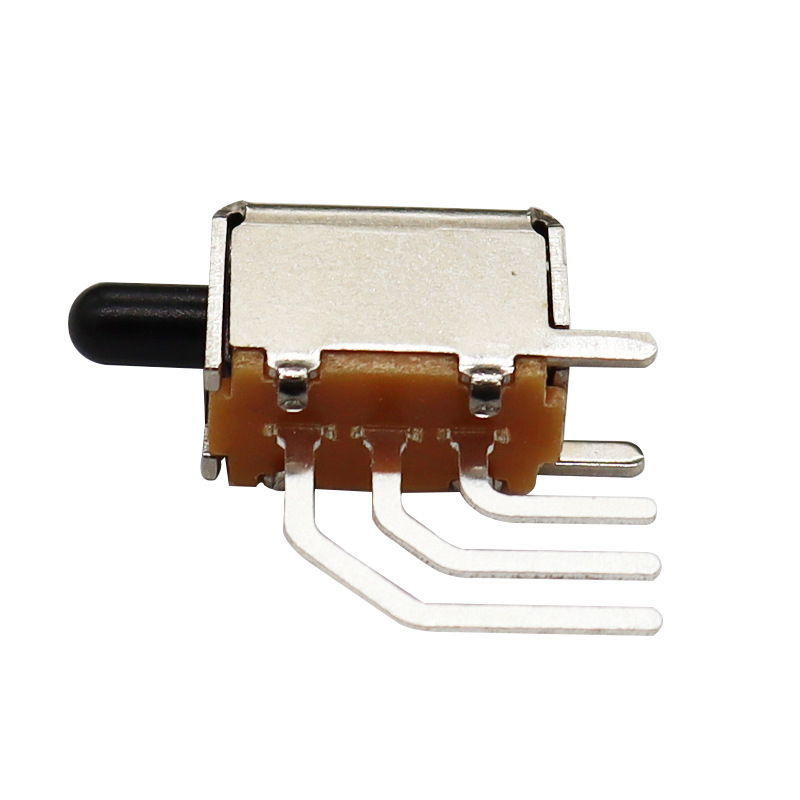

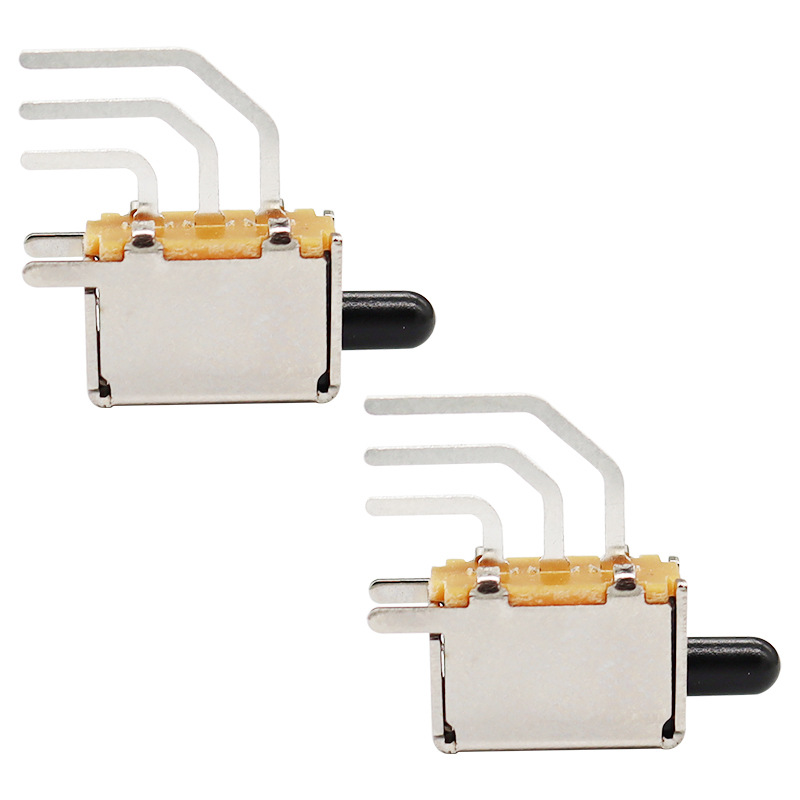

push switch PS12F39S A reset direct key switch is installed on the lighting side, and a self-locking switch is inserted on the small household appliances side
Five Advantages Of Products
- high quality materials
- high quality products
- strict quality control
- low-volume production
- mass production
Product Details
Contact resistance: ≤30mΩ
Insulation resistance: ≥100MΩ
Stroke: 1.0±0.15mm
Background light color: Custom
Handle color: Custom
Weight: 260g
Installation dimensions: 8*4.5mm
Product type: Self-resetting
operating direction: Left and right reset + forward pressing
Height (mm) : 3-6
Rated voltage (V) : DC30V
Rated current (A) 0.3 A
Operating force: 80±30gf
Number of pins: 3
