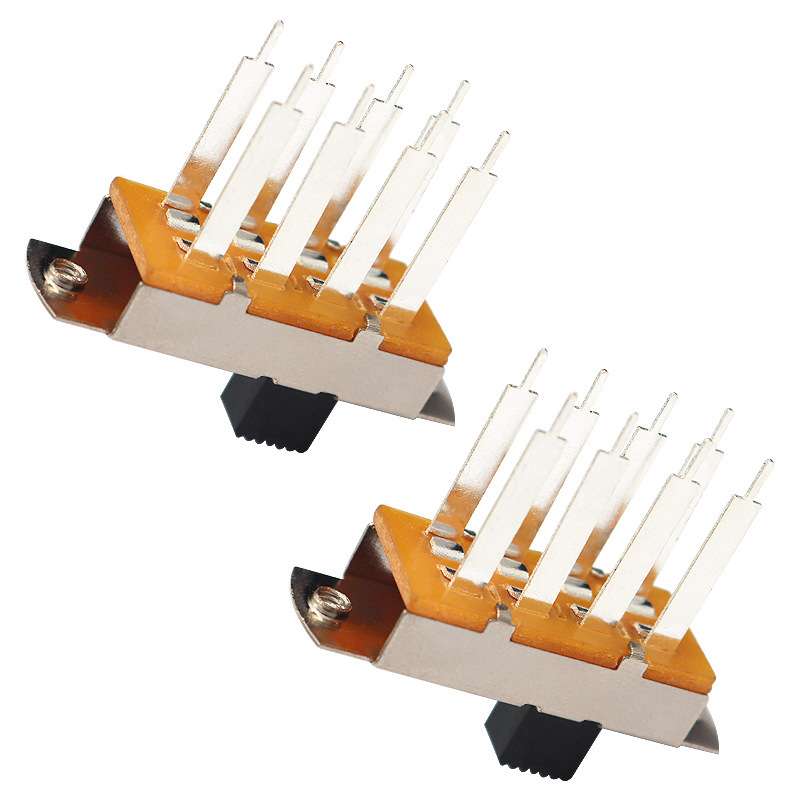

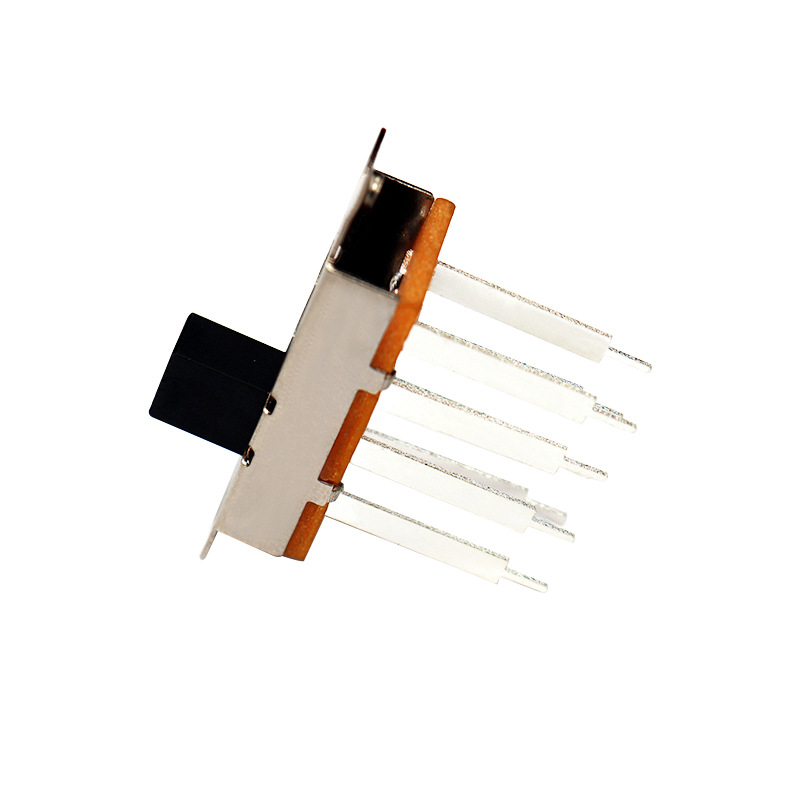

slide switch SS23L16 long pin toggle switch medical equipment industrial equipment high current switch three-position sliding switch
Five Advantages Of Products
- high quality materials
- high quality products
- strict quality control
- low-volume production
- mass production
Product Details
Control type: 2 poles, 3 positions
Rated current: 6.5
Rated voltage: AC250
Order Number: 01
Insulation resistance: ≥100MΩ
Dielectric strength: 250VAC/min
Contact resistance: ≤30mΩ
Operating force: 500gf±150gf
Stroke: 6.0mm
Operating structure: Vertical
Packaging method: Plate packaging
Handle height: 2-7mm
Supplementary parameters: Three levels
