Products

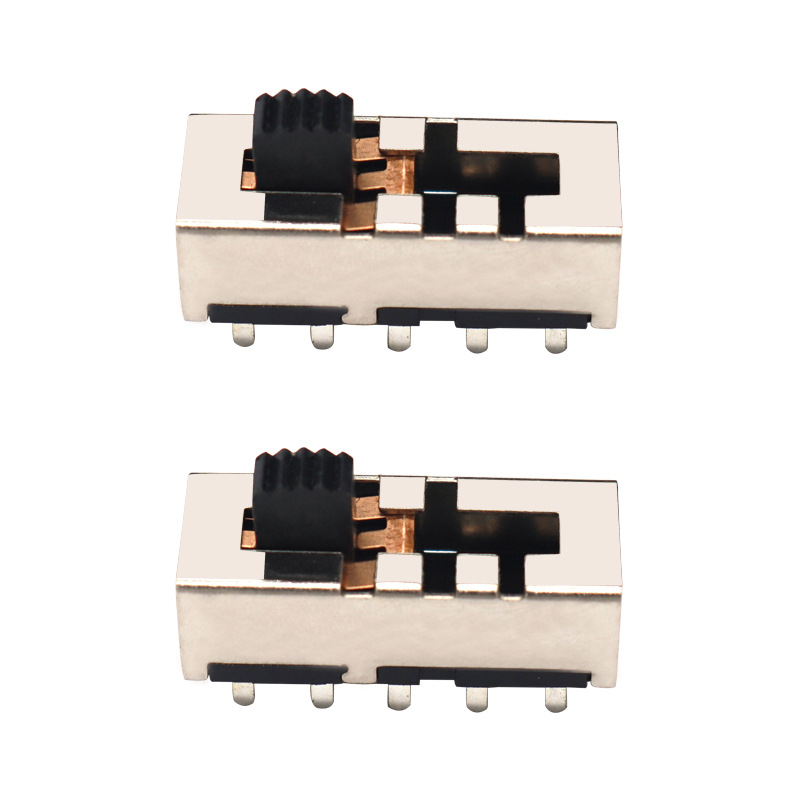

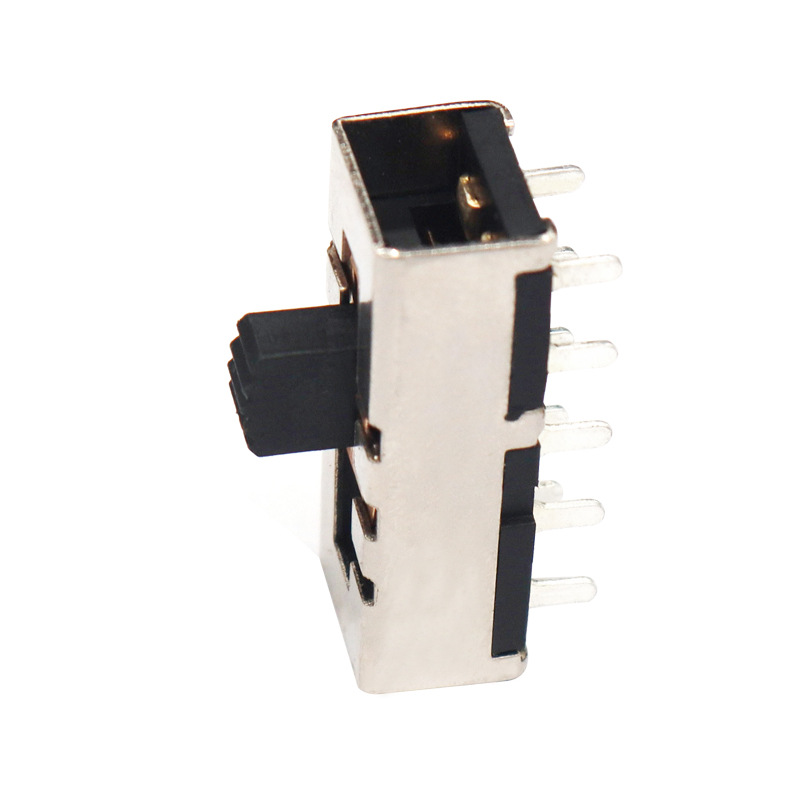

slide switch SS24H25 without ears, short pins, vertical pull, high current audio switch, electronic switch for home appliances
Five Advantages Of Products
- high quality materials
- high quality products
- strict quality control
- low-volume production
- mass production
Product Details
Control type: 2 poles, 4 positions
Rated current: 5A
Rated voltage: AC250
Insulation resistance: ≥100MΩ
Dielectric strength: 250VAC/min
Contact resistance: ≤30mΩ
Operating force: 350gf
Stroke: 4.0mm
Handle height: 2-7mm
Supplementary parameters: Four levels
dongguan xiaozhuo technology co., ltd
Contact Person: flora huang
Department: sales department
Post: sales manager
Telephone: +86 17774772320
Landline: +86 0769-86341524
Company Address: No. 250, shiheng avenue, shipai town, dongguan City
Factory Address: No. 250, shiheng avenue, shipai town, dongguan city
Website: www.xz-switch.com
