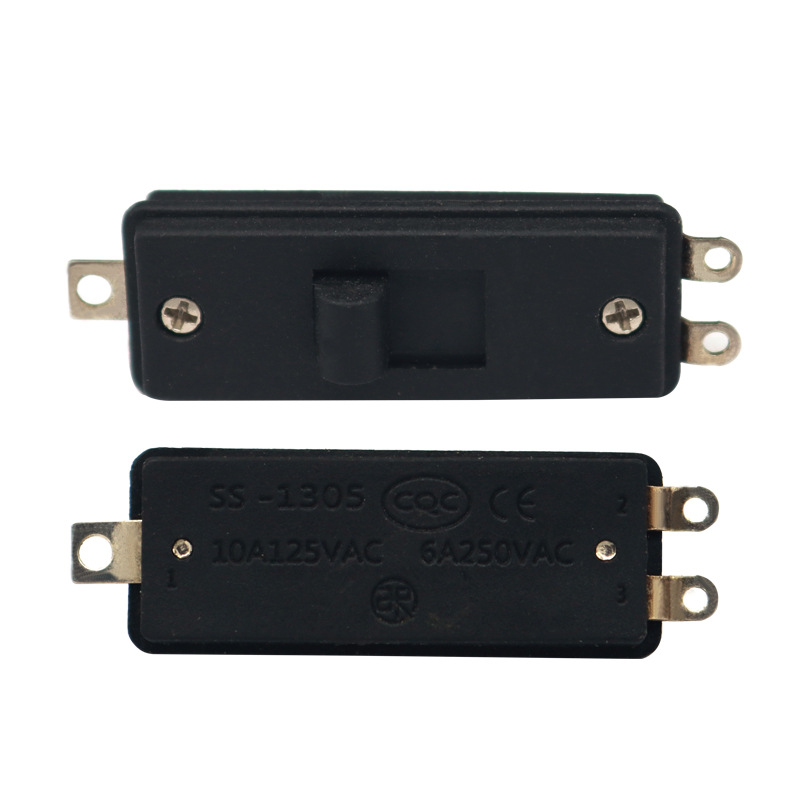

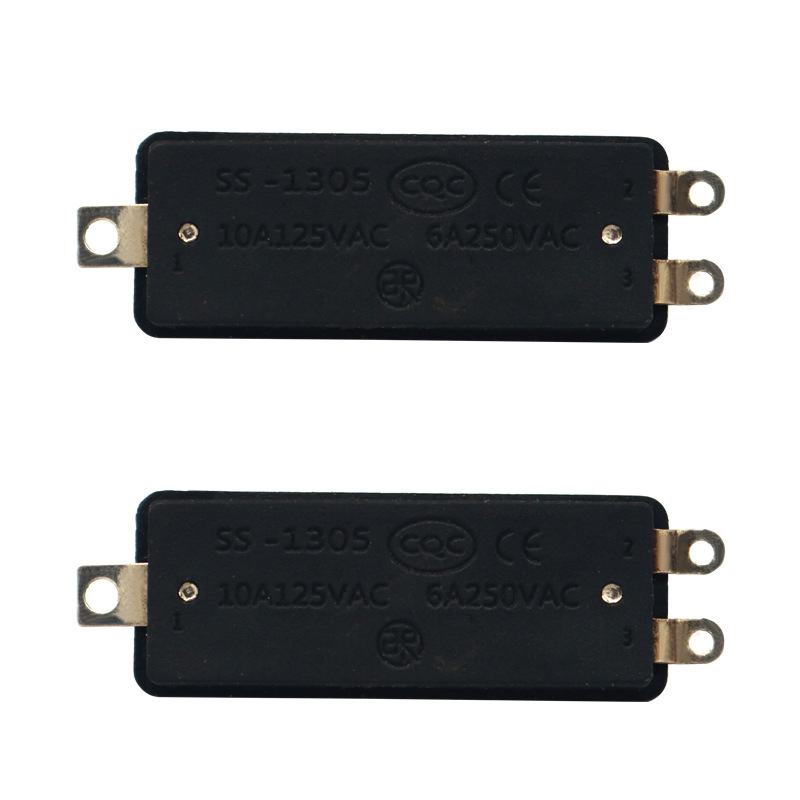

slide switch SS1305, hair dryer, electric blanket, car electrical switch, high current level switchtions slide switch
Five Advantages Of Products
- high quality materials
- high quality products
- strict quality control
- low-volume production
- mass production
Product Details
Control type: 2 poles, 3 positions
Rated current: 5A
Rated voltage: AC250
Order Number: 01
Insulation resistance: ≥100MΩ
Dielectric strength: 250VAC/min
Contact resistance: ≤50mΩ
Operating force: 500gf±150gf
Stroke: 2.7mm
Operating structure: Vertical
Handle height: 2-6mm
Supplementary parameters: Three levels
