Products

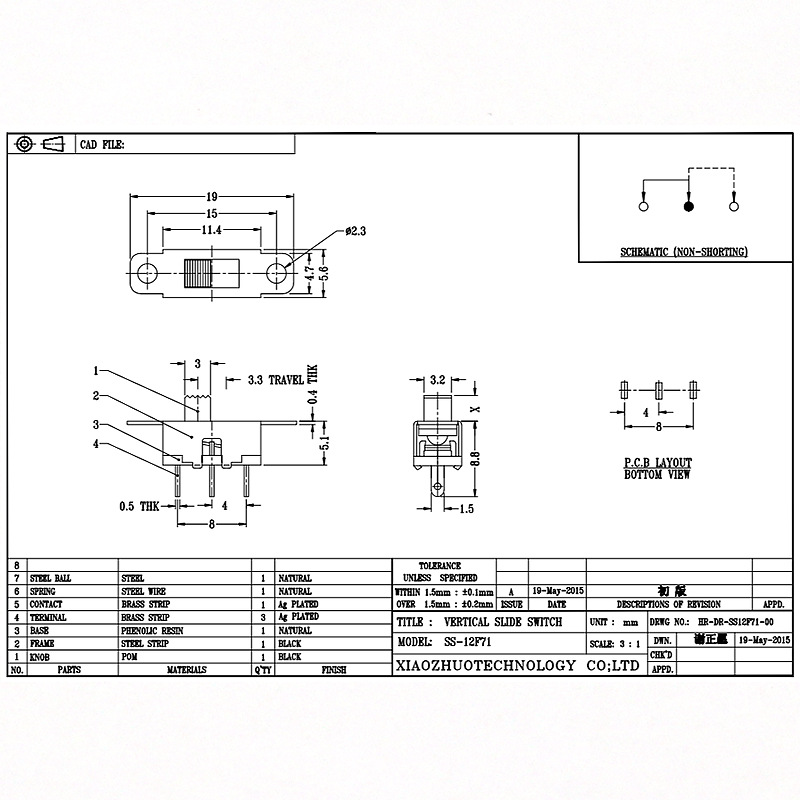

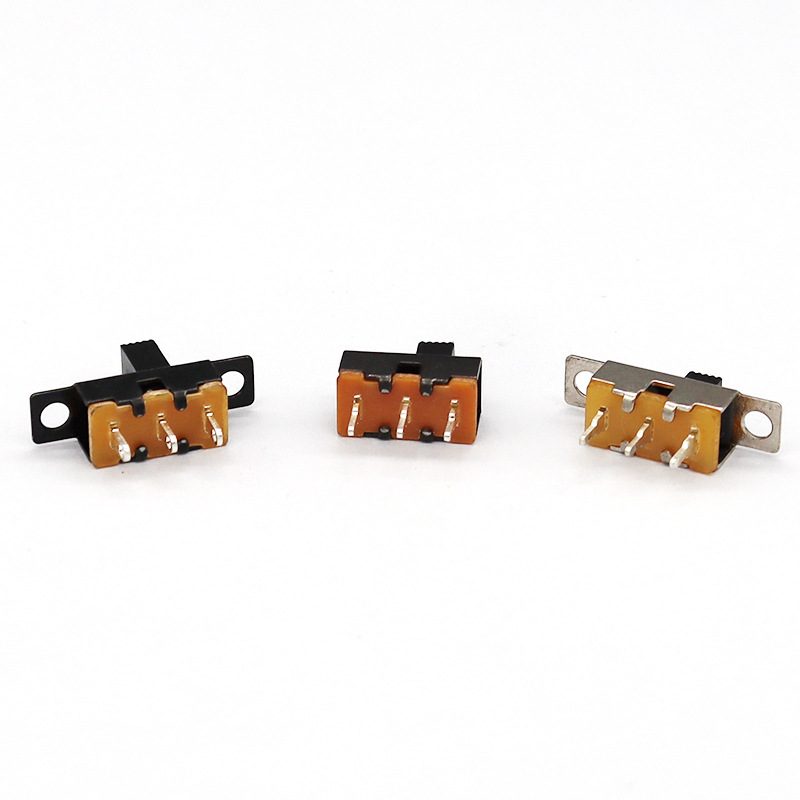

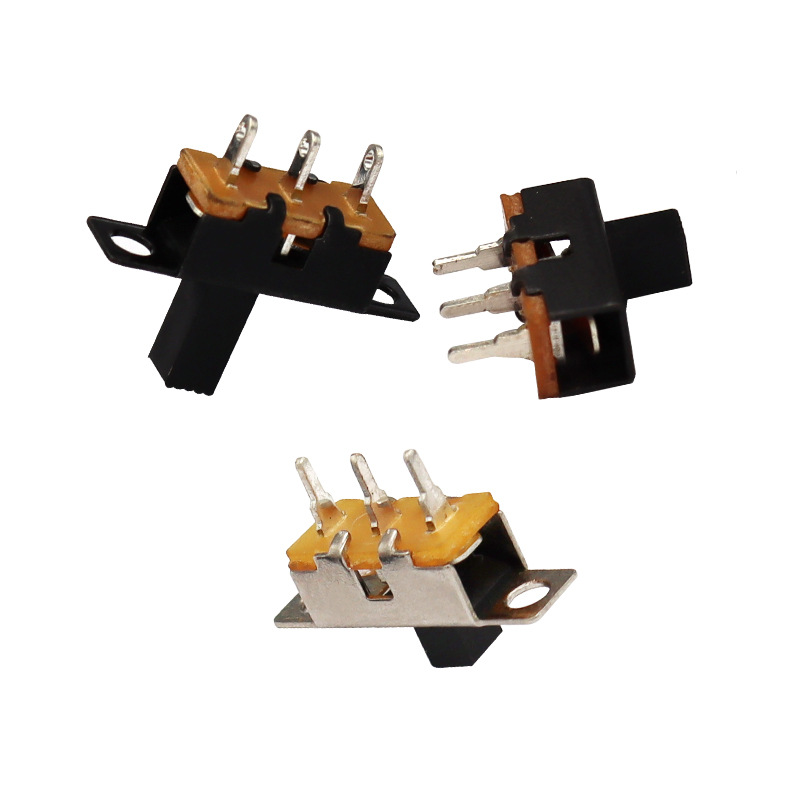

slide switch SS12F71 toy audio single-row three-pin sliding switch LED light micro vertical slide switch
Five Advantages Of Products
- high quality materials
- high quality products
- strict quality control
- low-volume production
- mass production
Product Details
Control type: Single-pole 2-bit
Rated current A: 1A
Rated voltage V: AC250V
Insulation resistance: ≥100MΩ
Dielectric strength: 250VAC/min
Contact resistance: ≤30mΩ
Operating force: 250gf±100gf
Stroke: 3.2mm
Supplementary parameters: Two levels
For other product information, please contact us for consultation
