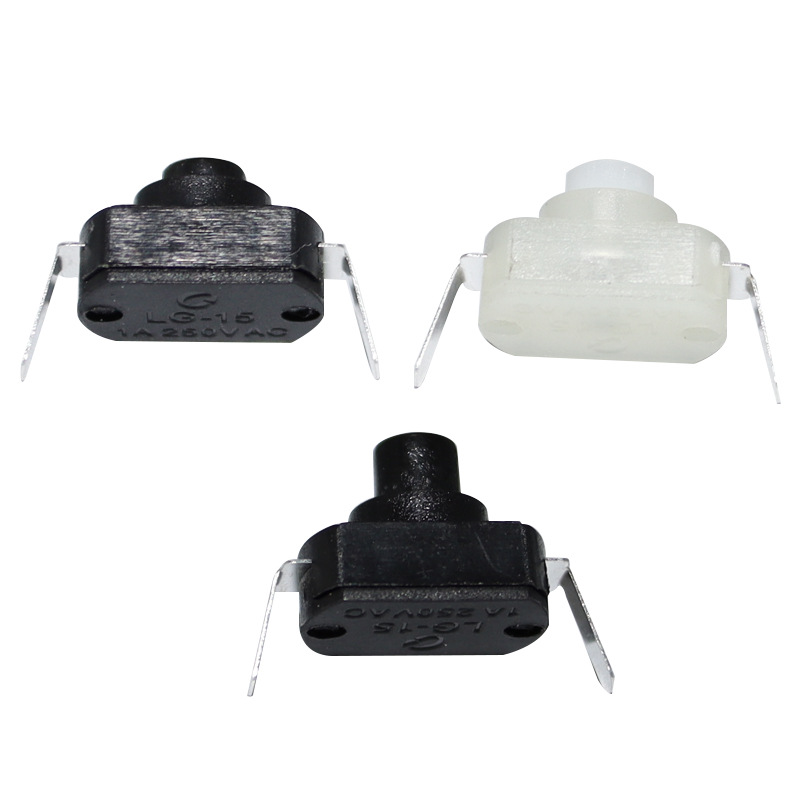

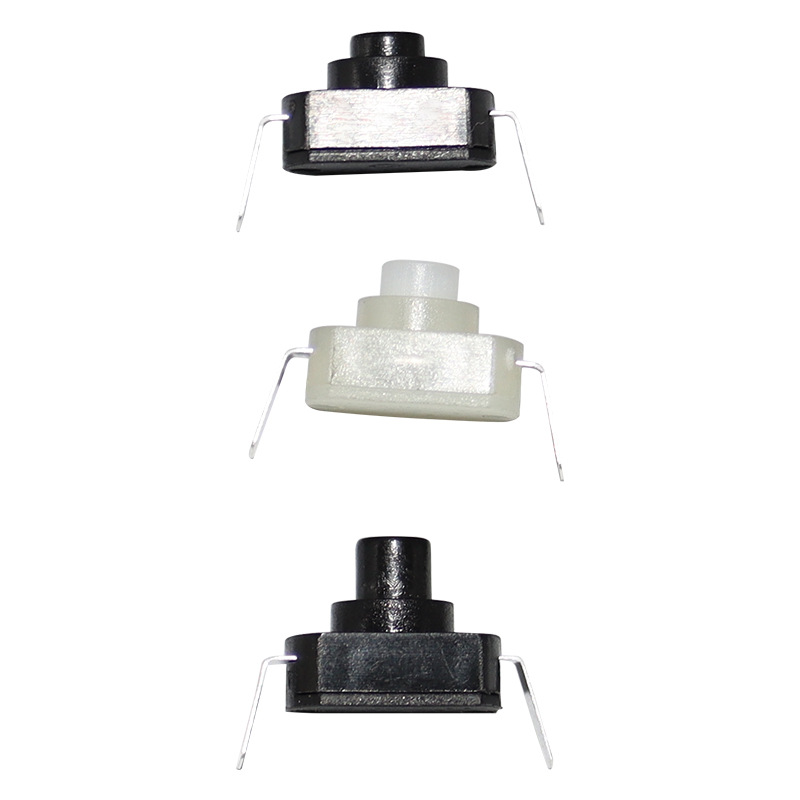

push switch LG-15 normally closed reset self-locking, lock-free button switch LED desk lamp flashlight
Five Advantages Of Products
- high quality materials
- high quality products
- strict quality control
- low-volume production
- mass production

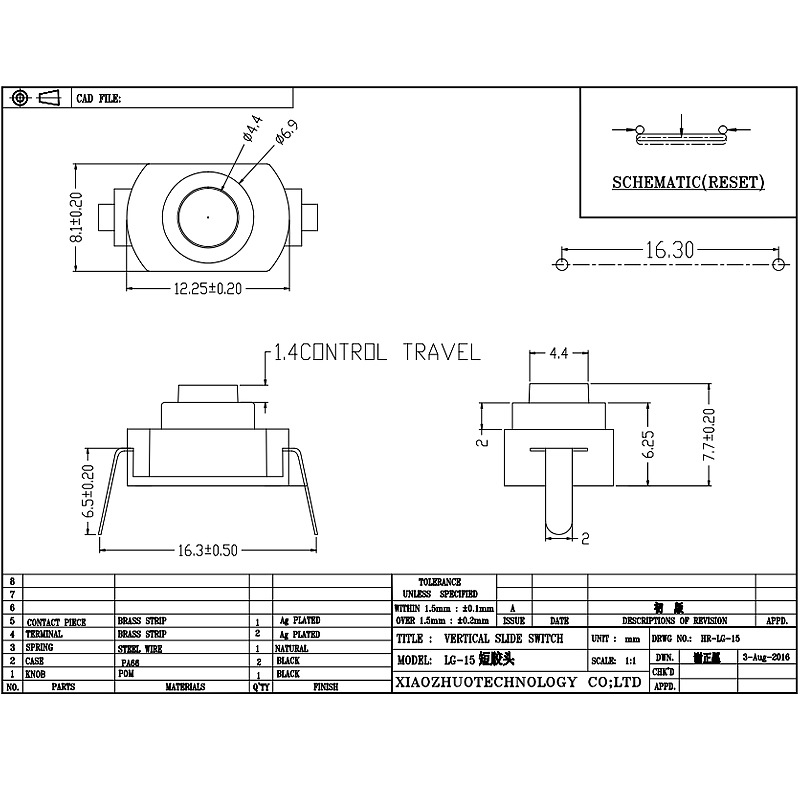

Product Details
Contact resistance: ≤50mΩ
Insulation resistance: ≥100MΩ
Stroke: 1.4±0.1mm
Size: 8*16.3*8.3
Rated voltage V: 250VAC
Rated current A: 1A
Operating force: 500±150gf
Number of pins: 2
For other parameters, please consult for customization
