Products

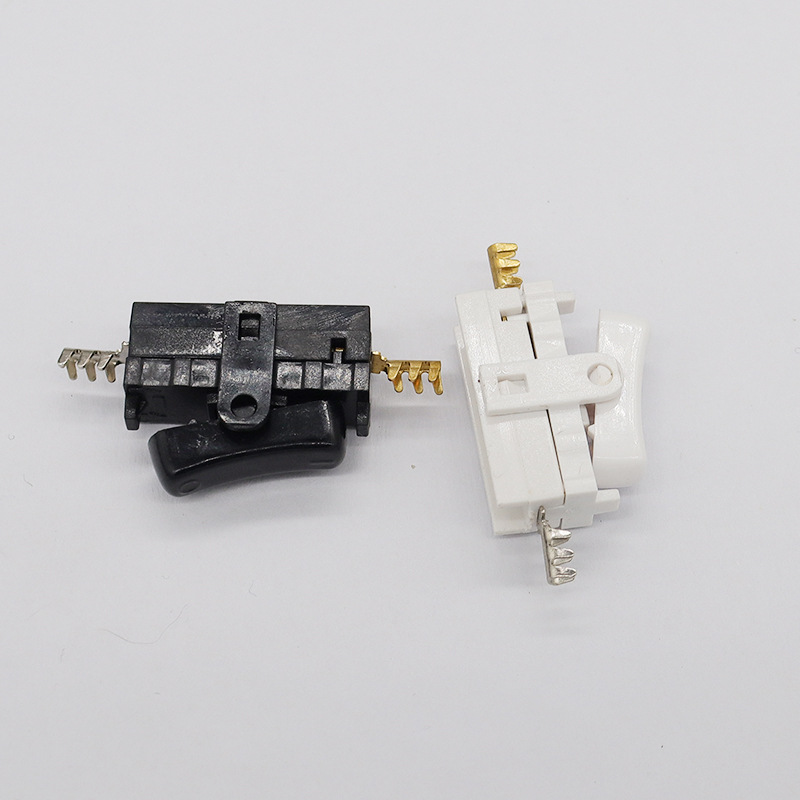

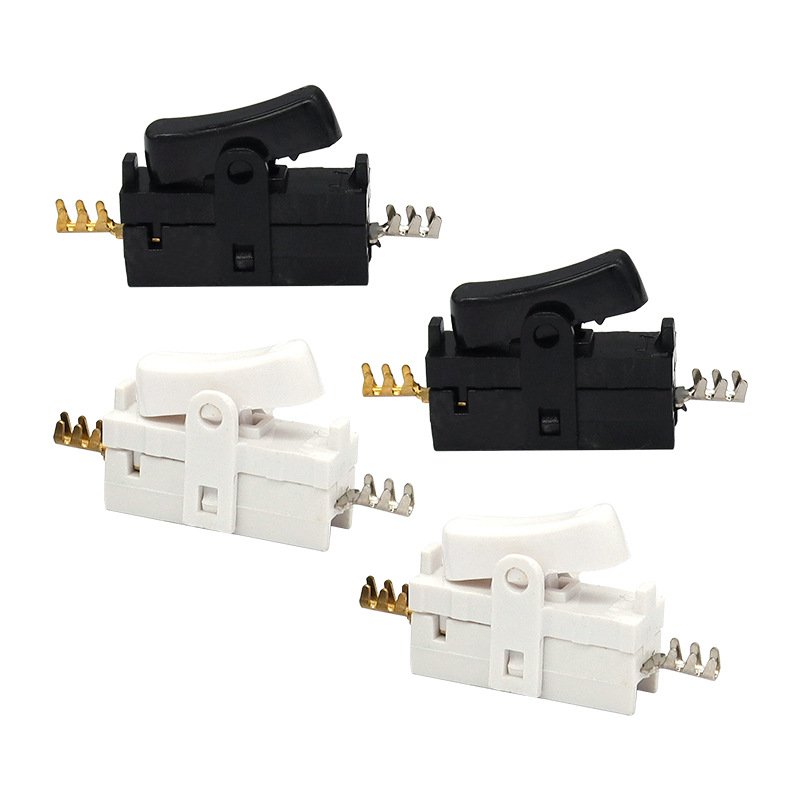

boat-shaped switch HR1101, heater table lamp boat-shaped crank switch, outdoor power switch
Five Advantages Of Products
- high quality materials
- high quality products
- strict quality control
- low-volume production
- mass production

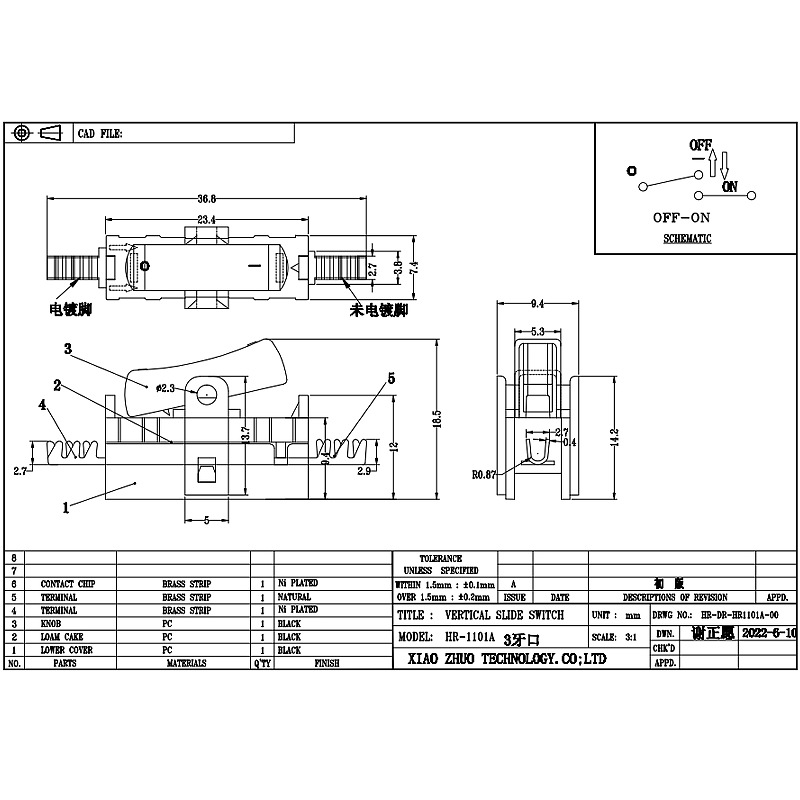

Product Details
Model: HR1101
Control type: 1 pole, 2 positions
Rated current: 1A
Rated voltage: AC250V
Insulation resistance: ≥100MΩ
Dielectric strength: 250VAC/min
Contact resistance: ≤50mΩ
Operating force: 350gf
Stroke: 3.5mm
Operating structure: Horizontal
Colour: Black
Packaging method: Plate packaging
dongguan xiaozhuo technology co., ltd
Contact Person: flora huang
Department: sales department
Post: sales manager
Telephone: +86 17774772320
Landline: +86 0769-86341524
Company Address: No. 250, shiheng avenue, shipai town, dongguan City
Factory Address: No. 250, shiheng avenue, shipai town, dongguan city
Website: www.xz-switch.com
